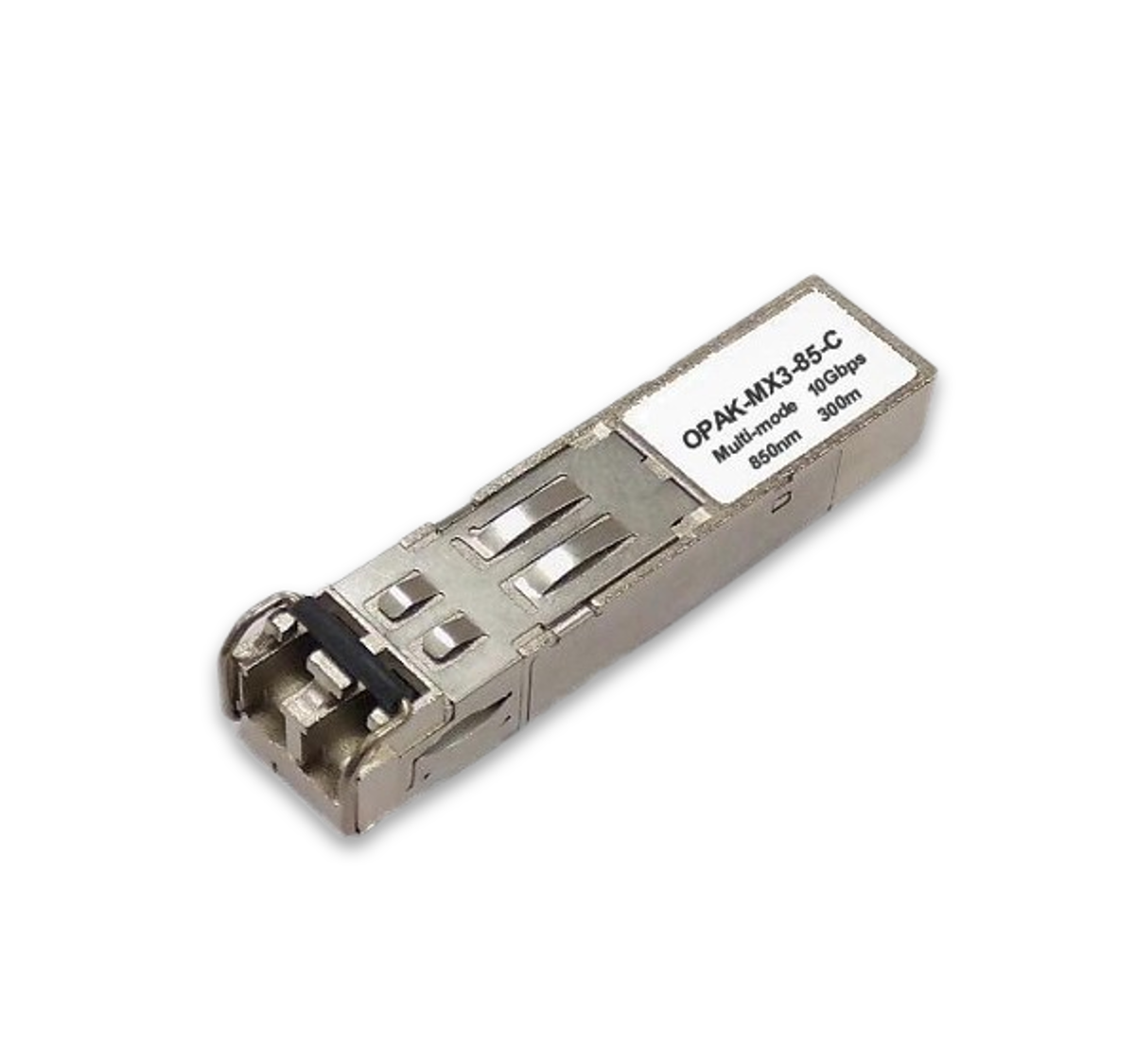

10G SFP+

10G SFP+

Tainet’s wide variety Optical Transceiver modules offer a great flexibility and performance, cost effective and straightforward solutions. With plenty experience in interoperability with 3^rd party standard based network equipment, Tainet’s Optical Transceivers are able to fulfill enterprises, service providers, telecom operators and SAN providers to build and fulfill their existing and future network expansions.

Request A Quote Datasheet

Category: Optical Transceiver

Description
Reviews (0)

Specification
10G SFP+
- Compliant with IEEE 802.3ae 10BGBASE-SW/SR, -LW/LR Ethernet Std.
- Wavelength: 850nm, 1310nm
- Compliant with SFF 8472 diagnostic monitoring interface
- Connector: Duplex LC connector
- Differential LVPECL inputs and CML outputs
- Differential PECL reference click input
- Power supply: 3.3V
- TTL signal detect indicator
- Hot pluggable
- Class 1 laser product complies with EN60825-1
- 8Gbps, 8x Fiber Channel available

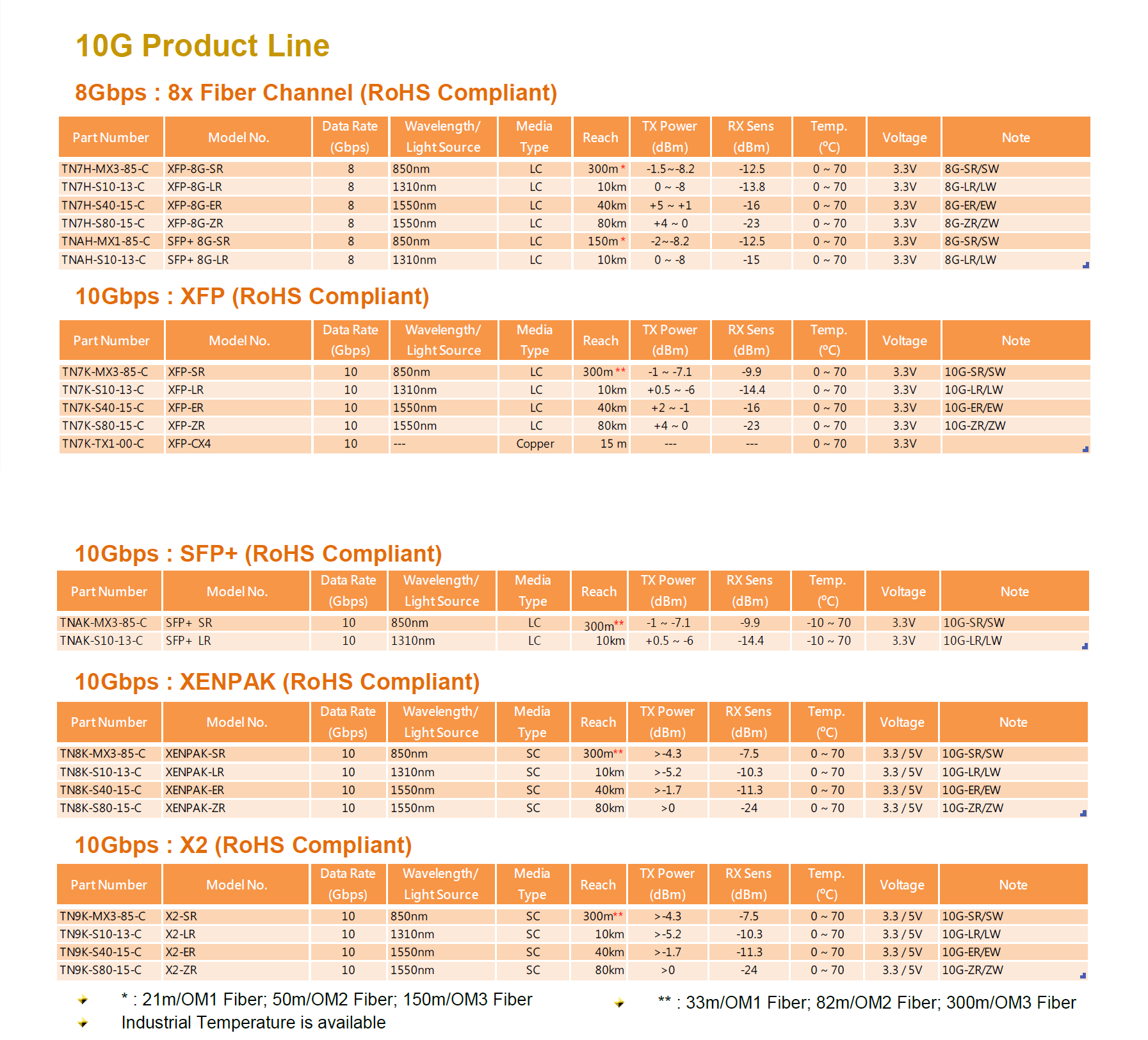

Model
