Copper-T

Copper-T

Tainet’s wide variety Optical Transceiver modules offer a great flexibility and performance, cost effective and straightforward solutions. With plenty experience in interoperability with 3rd party standard based network equipment, Tainet’s Optical Transceivers are able to fulfill enterprises, service providers, telecom operators and SAN providers to build and fulfill their existing and future network expansions.
Request A Quote  Datasheet
Category:



  • Specification

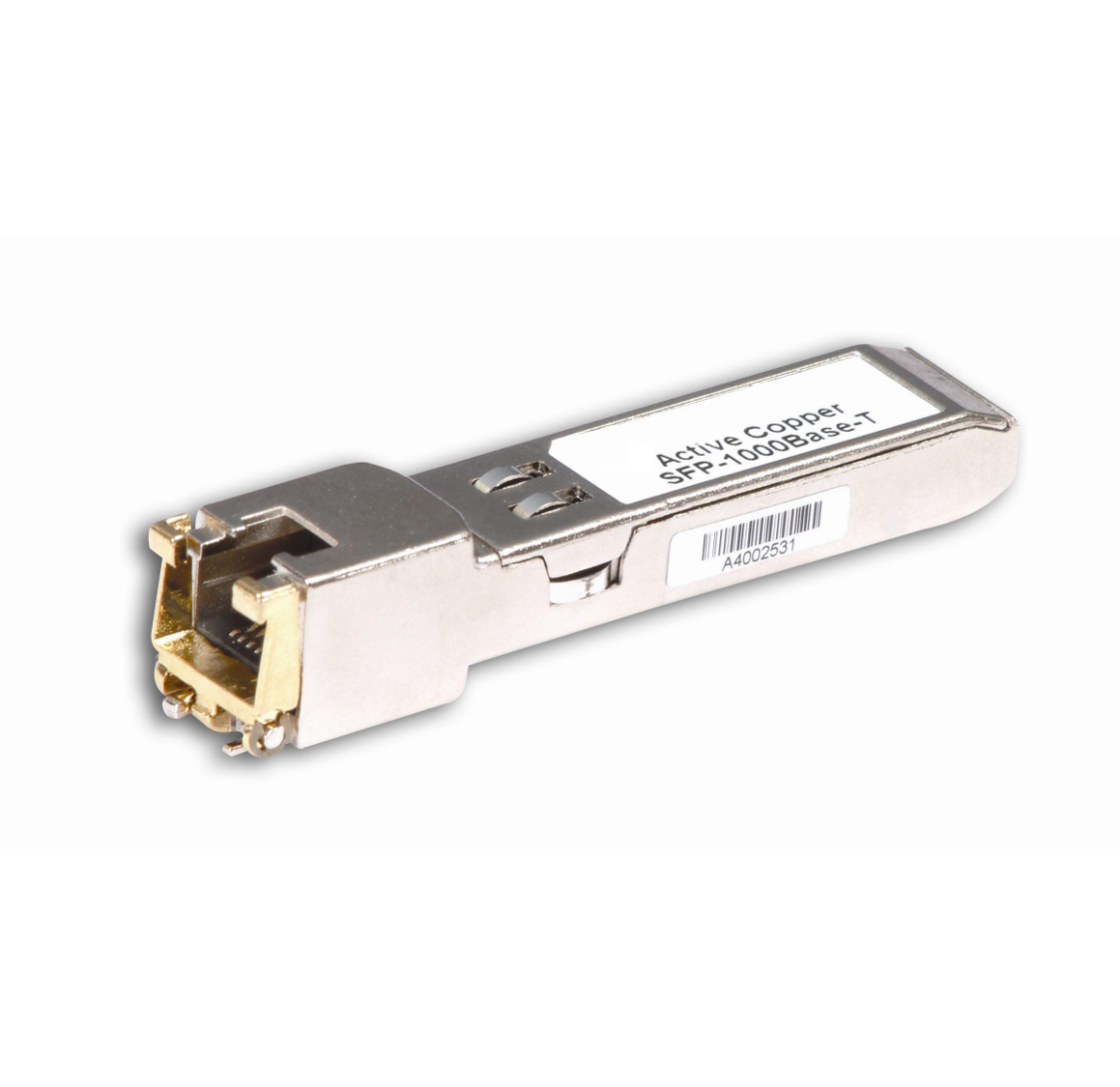

    Copper-T
    • Compliant with 802.3z 1000Base-T specification
    • Die-cast metal housing
    • Bit Rate: up to 1.25Gbps
    • Compatible with CAT 5 cable in excess of 100M in length
    • Power supply: 3.3V
    • Connector: RJ-45
    • Auto-sense MDI & MDI-S
    • SFP 1000Base-X auto negotiation bypass mode
    • Support SGMII interface (for 10/100/1000Base-T operation)
    • GBIC is also available

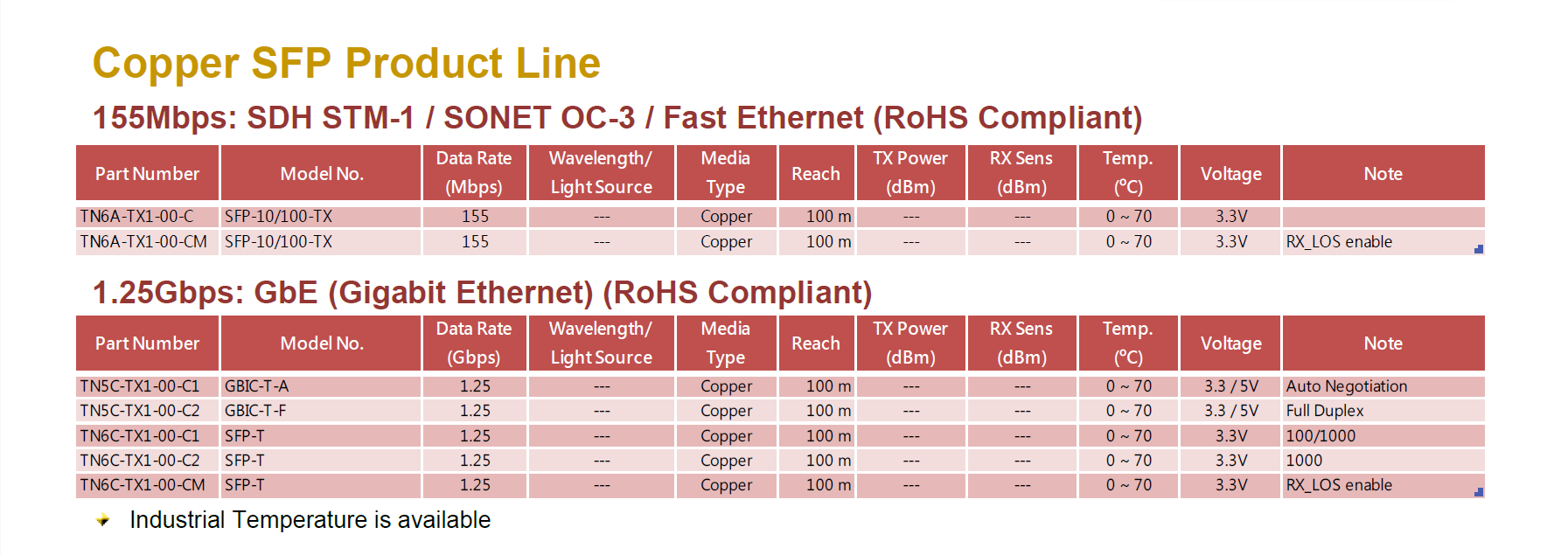

  • Model

    Model
