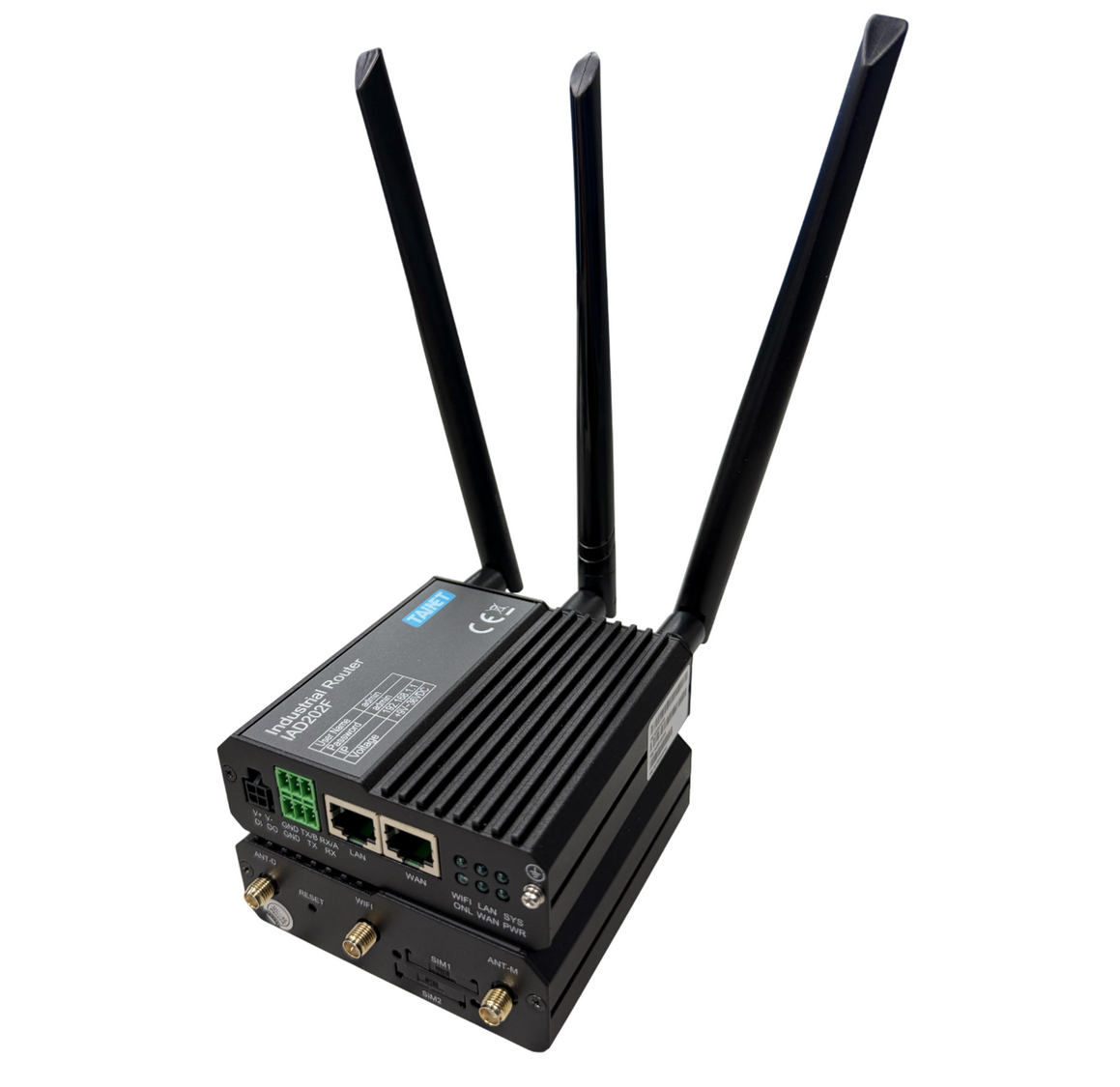

Industrial 4G LTE Router IAD202F

Industrial-grade Design

• High-performance industrial-grade CPU
• High-performance industrial-grade wireless communication module
• Metal casing, IP30 protection level
• Wide range power input (DC 5~36V)

Stability & Reliability

• EMC Level 3 and above, with strong anti-interference capability
• Dual SIM card design with complete dropout prevention mechanisms, ensuring the data terminal is always online
• Ethernet interface with 1.5KV electromagnetic isolation protection
• RS232/RS485 interfaces with 1.5KV ESD protection
• SIM card interface with 15KV ESD protection

Standard & Convenience

• Provides standard RS232 and RS485 ports for direct connection to serial devices
• 2 x 100M Ethernet ports for direct connection to Ethernet devices
• Supports standard network protocols, ensuring strong compatibility
• Supports remote management, simplifying operations
• Supports rail and wall-mounted installation for flexible deployment

High Performance

• Supports multiple VPN protocols including IPsec, OpenVPN, and WireGuard
• Built-in MQTT gateway, supporting data transparent transmission to HTTP/ MQTT/ Azure cloud
• Supports remote management platform and PC client applications
• Supports SPI firewall
• Wi-Fi supports multiple encryption methods including WEP, WPA, WPA2, etc.
• Supports multiple network protocols including TCP, UDP, IPv4, DNSS, Telnet
• Supports mounting remote file systems via SSH protocol
• Equipped with DDoS protection (SYN flood protection, SSH attack protection, Telnet attack protection)
• Flexible access control for SSH, Web interface, CLI, and Telnet
• Supports MODBUS TCP and Modbus RTU status/control
• Supports MQTT subscription and MQTT publishing
• Supports bridging and transparent transmission functions

Physical Interface

• WAN：1 x 10/100M RJ45 ethernet port adaptive MDI/MXIX, built-in 15KV ESD
• LAN：1 x 10/100M RJ45 ethernet port adaptive MDI/MXIX, built-in 15KV ESD (Support Passive PoE)
• Serial：1 x RS232, 1 x RS485 Serial interface with built-in 15KV ESD
• I/O：1 x DI, 1 x DO
• LED：”PWR”, “Online”, “LAN”, “WAN” , “WIFI”, “SYS”

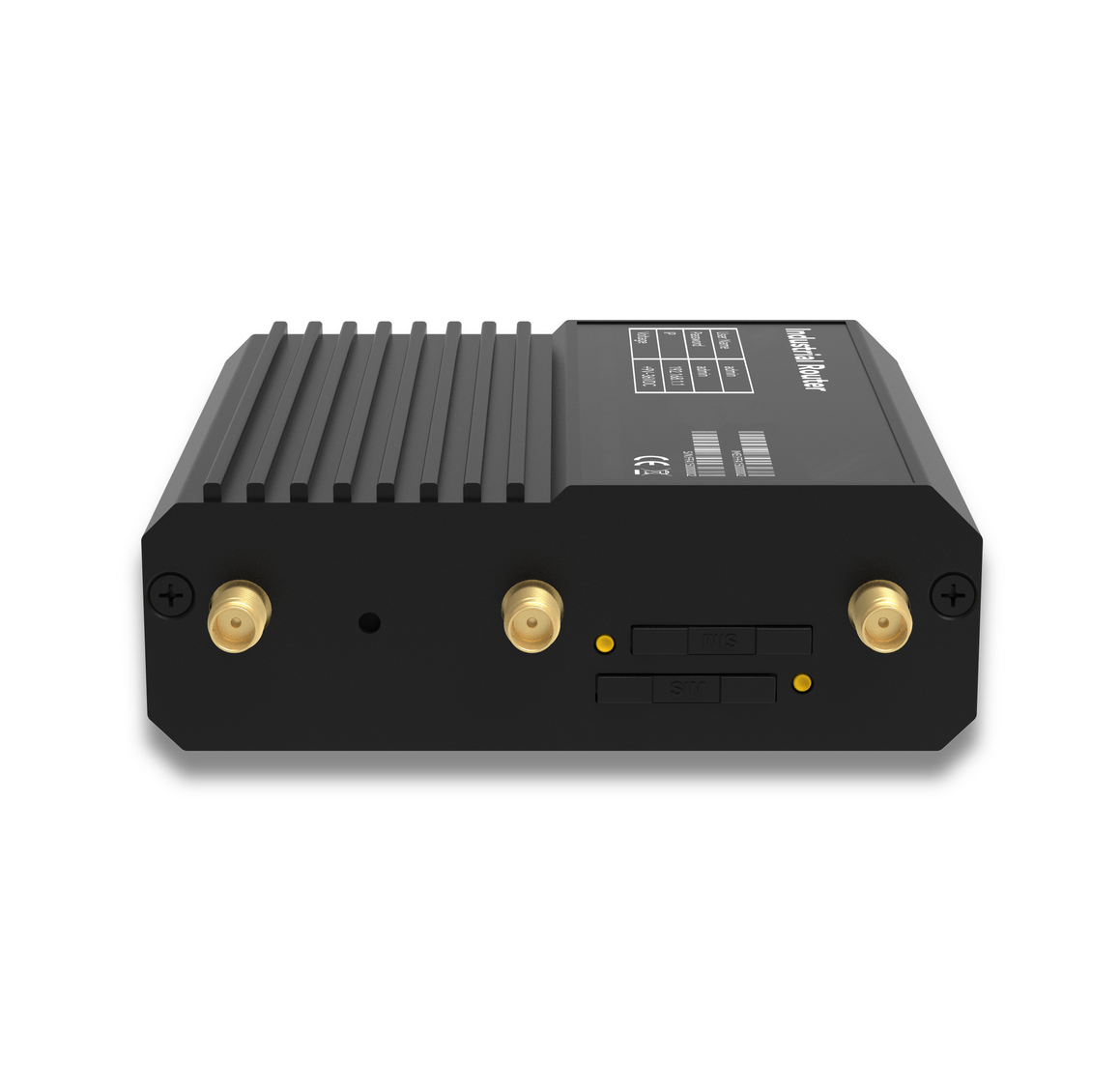

• Cellular Antenna：2 x Standard SMA female, characteristic impedance：50Ω
• Wi-Fi Antenna：1 x Standard SMA male, characteristic impedance：50Ω
• SIM/UIM Slot：2 x Standard 2FF SIM card slot

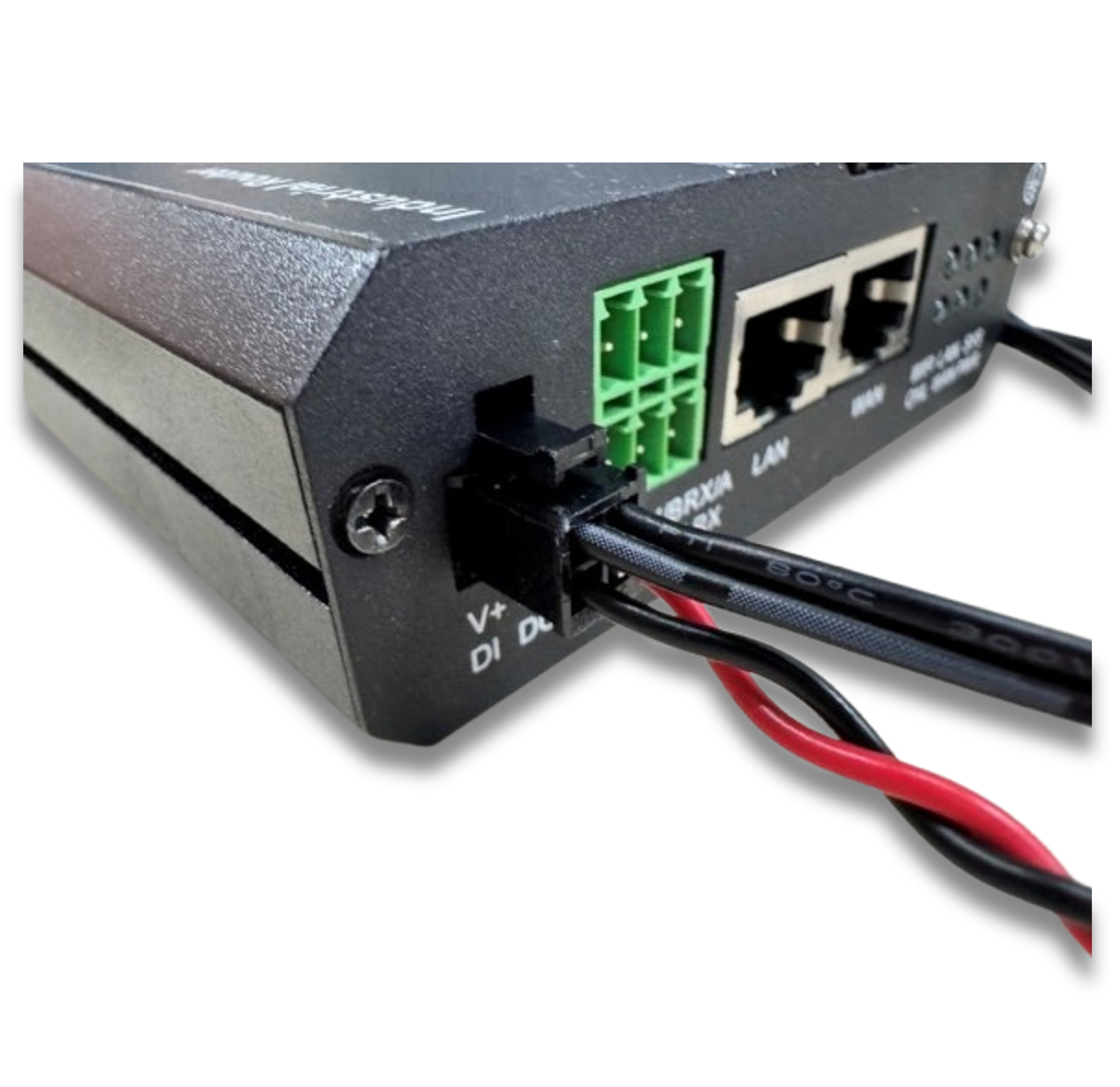

• Power：Standard 4 pin terminal block, with built-in phase-reversal and over-voltage protection
• Reset Button：Can reset router’s configuration to default factory setting by this button

WLAN Interface

• Standard and Band：IEEE 802.11a/b/g/n, 2.4G
• Bandwidth：
     - IEEE802.11b/g: 54Mbps (Maximum)
     - IEEE802.11n: 144Mbps (Maximum)
• Security：Support WEP, WPA, WPA2 and other encrypt methods
• Transmit Power：15±2dBm
• Sensitivity：<-72dBm 54Mbps

Cellular Interface

• Standard and Band：
     - 4G LTE CAT4
     - LTE FDD: B1/3/5/7/8/20/28
     - LTE TDD: B38/40/41
     - WCDMA: B1/5/8
     - GSM/GPRS/EDGE: 850/900/1800MHz
• Bandwidth：
     - LTE FDD: 150Mbps DL, 50Mbps UL
     - LTE TDD: 130Mbps DL, 30.5Mbps UL
     - WCDMA: 384Kbps DL, 384Kbps UL

Security and VPN

• VPN
     - IPsec
     - OpenVPN
     - WireGuard
     - GRE
     - DMVPN
     - PPTP
     - L2TP
     - ZeroTier
• Firewall：Stateful packet inspection
• DDoS Protection
     - SYN flood prevention
     - SSH attack protection
     - Telnet attack protection
• Access Control: SSH, Web Interface, CLI, and Telnet

IoT Protocol Support

• MQTT：Publish and subscribe for seamless integration with IoT platforms
• Modbus：TCP/RTU Bridge serial devices to modern SCADA systems
• HTTP：Push telemetry directly to APIs or cloud dashboards

Power Consumption

• Standard：DC12V/ 1.5A
• Voltage Range：DC 9 ~ 36V
• Operating Current：<1.2A (12V)

Physical Properties

• Casing：
     - Aluminum metal casing
     - IP30 protection level
• Dimensions：91.4mm x 92.4mm x 31mm (Excluding antennas and mountings)
• Weight：200g
• Operating Temperature：-40 ~ +75℃
• Storage Temperature：-40 ~ +85℃
• Relative Humidity：95% (non-condensing)
