Optical Transciever SFP

Tainet’s wide variety Optical Transceiver modules offer a great flexibility and performance, cost effective and straightforward solutions. With plenty experience in interoperability with 3rd party standard based network equipment, Tainet’s Optical Transceivers are able to fulfill enterprises, service providers, telecom operators and SAN providers to build and fulfill their existing and future network expansions.

Request A Quote  Datasheet

Category:
  • Feature

    • Application available for Fast Ethernet, Gigbit Ethernet, 10G Ethernet, SDH/SONET, CWDM and Fiber Channel
    • Data rate supported from 155Mbps to 10Gbps
    • Hot-pluggable to maximize uptime and simplify serviceability
    • SFF-8472 Digital Diagnostics Monitoring Function
    • Industrial Temperature is available for option
    • Laser Class 1 Product which complies with IEC 60825-1 and 60825-2
    • EU RoHS Environmental Requirement available
  • Specification

    SFP
    • Compliant with Fiber Channel 100-M5-SN-1,100-M6-SN-1, 200-M5-SN-1, 200-M6-SN-1, 400-M5-SN-1, 400-M6-SN-1 Std.
    • Compliant with Fast Ethernet and IEEE 802.3z Gigabit Ethernet Std.
    • Compliant with SDH STM-1/4/16, SONET OC-3/12/64 Std.
    • Industry Std. Small From Pluggable (SFP) MSA compatible
    • Wavelength: 850nm VCSEL, 1310nm FP, 1550nm DFB
    • Bit Rate: 155Mbps, 1.25Gbps, 2.125Gbps, 2.67Gbps, 4.25Gbps
    • Transmission distance: 550m, 2km, 10km, 40km, 50km, 70km, 90km, 110km
    • Power supply: 3.3V
    • Connector: Duplex LC connector
    • Class 1 laser product complies with EN60825-1
    • DDM (Digital Diagnostic Monitoring) function compliant with SFF 8472
    SFP BIDI
    • Compliant with Fiber Channel 100-M5-SN-1, 100-M6-SN-1Std.
    • Compliant with Fast Ethernet and IEEE 802.3z Gigabit Ethernet Std.
    • Compliant with SDH STM-1, SONET OC-3 Std.
    • Industry Std. Small From Pluggable (SFP) MSA compatible
    • Wavelength: 1310/1550nm, 1310/1490nm, 1510/1570nm
    • Bit Rate: 155Mbps, 1.25Gbps
    • Transmission distance: 10km, 20km, 40km, 60km, 80km, 100km, 120km
    • Power supply: 3.3/5V (GBIC), 3.3V (SFP)
    • Connector: Simplex SC, LC connector
    • Class 1 laser product complies with EN60825-1
    • DDM (Digital Diagnostic Monitoring) function compliant with SFF 8472

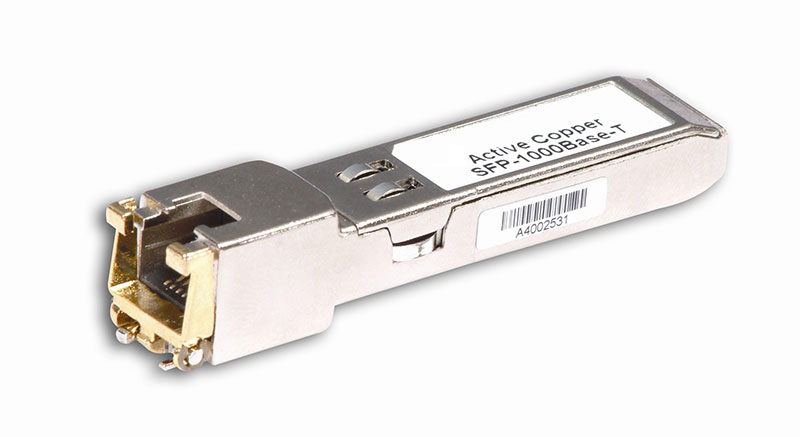

    Copper-T
    • Compliant with 802.3z 1000Base-T specification
    • Die-cast metal housing
    • Bit Rate: up to 1.25Gbps
    • Compatible with CAT 5 cable in excess of 100M in length
    • Power supply: 3.3V
    • Connector: RJ-45
    • Auto-sense MDI & MDI-S
    • SFP 1000Base-X auto negotiation bypass mode
    • Support SGMII interface (for 10/100/1000Base-T operation)
    • GBIC is also available
    CWDM
    • Compliant with Fiber Channel Std.
    • Compliant with SDH STM-1, SONET OC-3 Std.
    • Industry Std. Small From Pluggable (SFP) MSA compatible
    • Wavelength: 1270nm ~ 1610nm
    • Bit Rate: 155Mbps, 1.25Gbps, 2.67Gbps multi-rate
    • Power Margin: 20dB, 24dB, 27dB, 30dB
    • Power supply: 3.3V
    • Connector: Duplex LC connector
    • Hot pluggable
    • Class 1 laser product complies with EN60825-1
    • DDM (Digital Diagnostic Monitoring) function compliant with SFF 8472
    • GBIC is also available
    10G XFP
    • Compliant with 10GFC 1200-MX-SN-1 Fiber Channel, Std
    • Compliant with IEEE 802.3ae 10BGBASE-SW/SR,
    • LW/LR, -EW/ER, -ZW/ZR Ethernet Std.
    • Wavelength: 850nm, 1310nm, 1550nm
    • Compliant with XFP Multi-Source Agreement (MSA)
    • Connector: Duplex LC connector
    • Differential CML inputs and CML outputs
    • Differential PECL reference click input
    • 1/64 transmitter data rate
    • TTL signal detect indicator
    • Hot pluggable
    • Class 1 laser product complies with EN60825-1
    • 8Gbps, 8x Fiber Channel available
    10G SFP+
    • Compliant with IEEE 802.3ae 10BGBASE-SW/SR, -LW/LR Ethernet Std.
    • Wavelength: 850nm, 1310nm
    • Compliant with SFF 8472 diagnostic monitoring interface
    • Connector: Duplex LC connector
    • Differential LVPECL inputs and CML outputs
    • Differential PECL reference click input
    • Power supply: 3.3V
    • TTL signal detect indicator
    • Hot pluggable
    • Class 1 laser product complies with EN60825-1
    • 8Gbps, 8x Fiber Channel available
    10G XENPAK
    • Compliant with IEEE 802.3ae 10BGBASE-SR, -LR, -ER,
    • ZR Ethernet Std.
    • Wavelength: 850nm, 1310nm, 1550nm
    • Compliant with XENPAK Multi-Source Agreement (MSA)
    • Connector: Duplex SC connector
    • Differential CML inputs and CML outputs
    • Differential PECL reference click input
    • 1/64 transmitter data rate
    • TTL signal detect indicator
    • Hot pluggable
    • Class 1 laser product complies with EN60825-1
    GBIC
    • Compliant with Gigabit Interface Converters Std. & Fiber channel Std.
    • Wavelength: 850nm VCSEL, 1310nm FP, 1550nm DFB
    • Bit Rate: up to 1.25Gbps
    • Transmission distance: 550m, 2km, 10km, 40km, 70km, 90km, 110km
    • Power supply: 3.3V / 5V
    • Connector: Duplex SC connector
    • Hot pluggable
    • Class 1 laser product complies with EN60825-1
