G.SHDSL.bis EFM/TDM Line Card

TAINET’s SNTU 765 series is DSL line card which enables the Ethernet & E1 data to be transmitted with the speed of 5.7/11.4Mbps over 2/4 wires. It supports up to 15 Mbps per pair of G.SHDSL.bis symmetrical data transmission under extension mode.

SNTU series is compatible with TAINET iEAC-16 chassis. This combination is designed to work as a central office especially for long distance Ethernet Access Service. To reduce the burden of operation/management the operator can control and monitor the remote unit via Embedded Operation Channel (EOC) by following ITU-T G.991.2.Moreover, the administrators can also easily configure all Comet series through Telnet (SSH), Web HTTP/HTTPS) or SNMP agent.

Request A Quote  Datasheet

  • Features

    • Supports EFM and TDM Dual Bearer Mode
    • Point to point Ethernet and E1 extension over multiple G.SHDSL.bis copper lines
    • The interfaces E1 and Ethernet can work simultaneously
    • Compliant with IEEE 802.3ah EFM 2Base-TL bonding technology
    • Compliant with ITU-T G.991.2 standard, TC-PAM 16/32/64/128 line coding
    • 1 or 2 pairs G.SHDSL.bis with 5.7Mbps per pairs Supports extension rate up to 15Mbps over a single pair of copper
    • CO and CPE mode selectable
    • Automatic line rate selection with Line Probe enabled
    • Front panel status LED indicators for easy monitoring
    • Easy installation with console, Telnet, WEB GUI and SNMP
    • Front panel test button with BERT for easy loop diagnostic
    • Provides extensive diagnostics, including loopback, G.SHDSL.bis and E1 performance monitoring
    • Easy software upgrade for field-deployed units via TFTP/HTTP
    • DSL line protection for data transmission
    • Ethernet switching and bridging with VLAN prioritization and QoS
    • Optional temperature-controlled FAN
    • Optional Ethernet port surge protection
    • Supports security-link

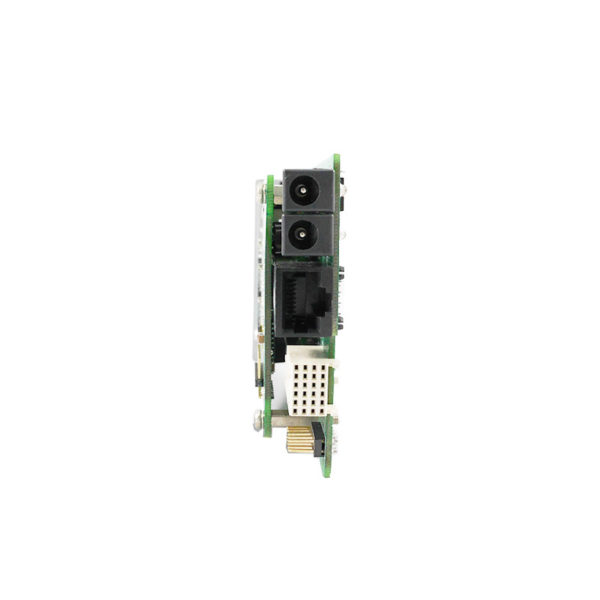

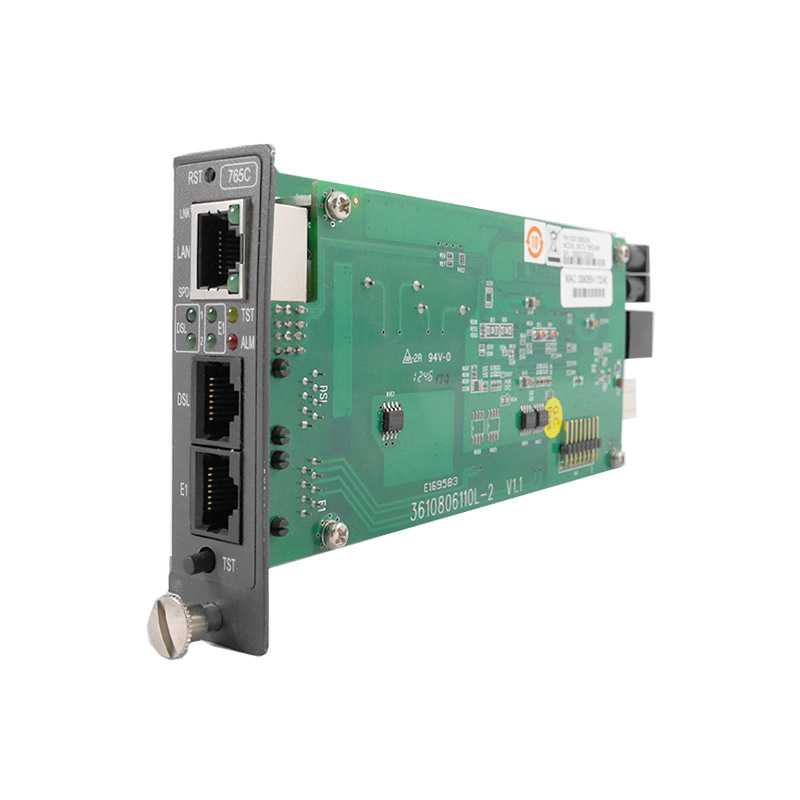

    • SNTU765C is a line card type which can work within iEAC-16 chassis
  • Specifications

    • SNTU765C(Line card), 4-wire, 1 E1 G.703, 1 Ethernet port
    Line Interface – G.SHDSL.bis
    • Type: 4-wire
    • Standard: ITU-T G.991.2, ETSI 101 524
    • Bonding protocol: IEEE 802.3ah EFM 2Base-TL
    • Line rate: n x 64Kbps, n=3~89 (2w), 6~178 (4w)
    • Connector: 1xRJ-45
    • Line coding: TC-PAM 16/32/64/128
    • Impedance: 135 ?
    • ITU K.21 compliant
    DTE Interface – Ethernet
    • Ethernet type: 10/100 BaseT
    • Connector: RJ-45
    • Supports 802.3x flow control
    • Auto-MDI/MDIX detection
    • Auto-negotiation for speed and duplex
    • Full duplex / Half duplex support
    DTE Interface – E1
    • Data Rate: 2.048 Mbps
    • Connector: RJ-45 for balanced E1 120
    • (Optional external convert cable for unbalanced 75)
    • Line coding: HDB3
    • Framing: Framed /Framed+CRC /Unframed
    • Compliance: ITU-T G.703, G.704, G.706 and G.732
    • Jitter Performance: compliant with ITU-T G.823
    Timing Source Function
    • Synchronous and Plesiochronous dual clock mode
    • Internal clock
    • Received clock from DSL line
    • External clock from E1 interface
    Ethernet L2 function
    • Supports 802.1d transparent bridge function
    • Supports Bridge filter function based on source MAC
    • addresses
    • Scalable per port bandwidth control (Step = 64K, up to 100M)
    • 2K MAC learning address
    • Ethernet packet length up to 1664 bytes
    • Supports 802.3x flow control
    • Provides 802.1q VLAN tagging
    • Supports 802.1p QoS facility
    • Configuration via craft port VT-100, Telnet, WEB GUI and SNMP
    • Multiple Web browsers supported: IE, Firefox, Chrome
    • Console: DB9 connector (RS232C)
    • Support remote management
    • Independent Local and Remote loopback for E1 port diagnostic
    • Support Performance Monitoring function
    • Front panel test button for easy loop healthy testing
    • Front panel reset to default button

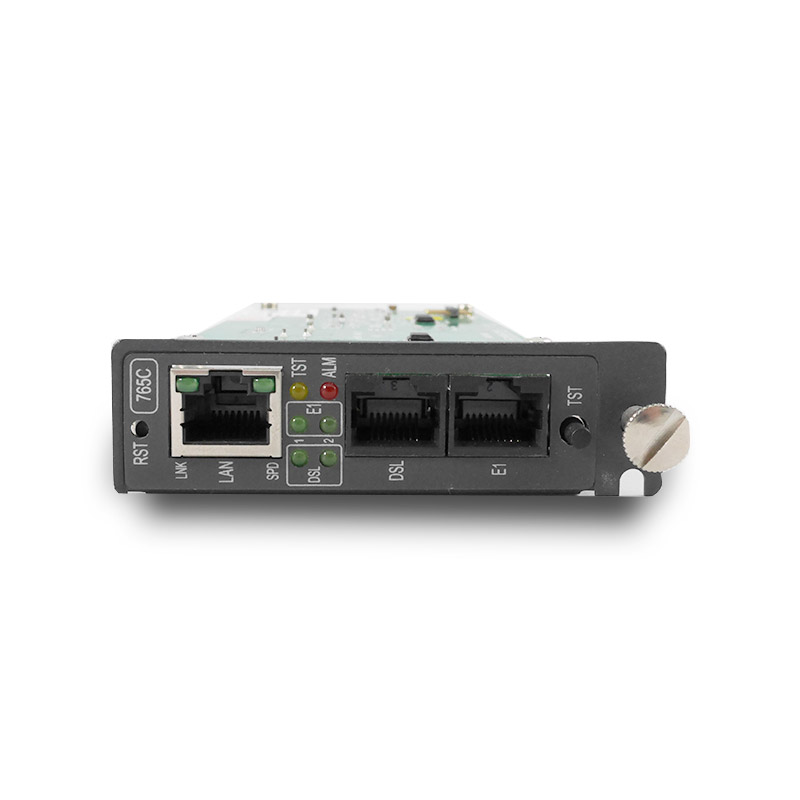

    LED Indicators
    • SNTU765C:
    • Dual color LED for easy status monitoring
    • 84(W) x 171(D) x 24(H) mm
    Operating Environment
    • Operation temperature: 0oC ~ 50oC
    • Storage temperature: -40oC ~ 70oC
    • Humidity: 90%,non-condensing
