Fiber Ethernet Converter Single Mode Multi-Mode Bi-di WDM

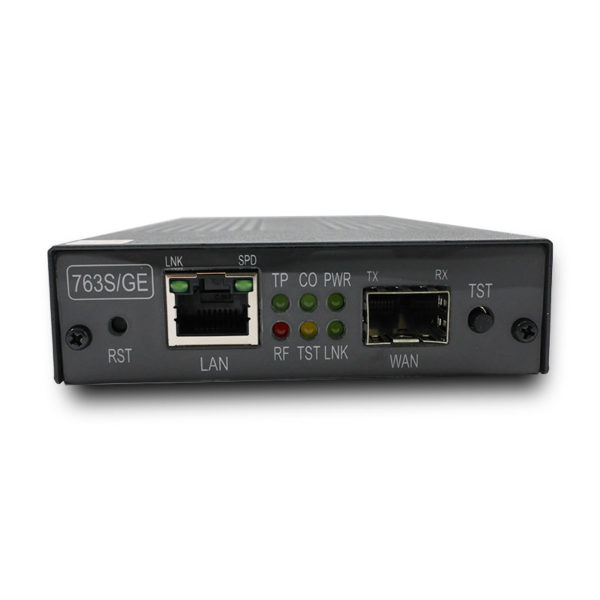

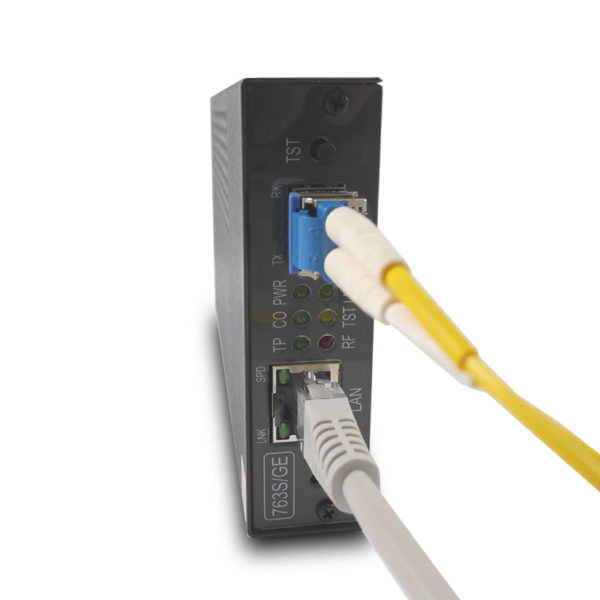

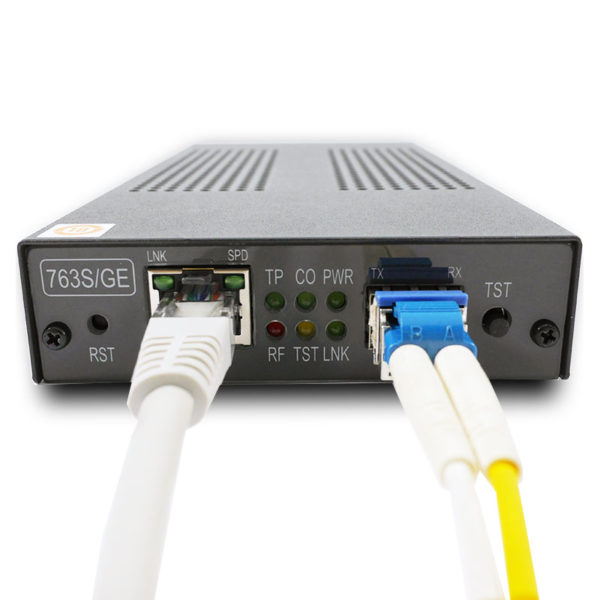

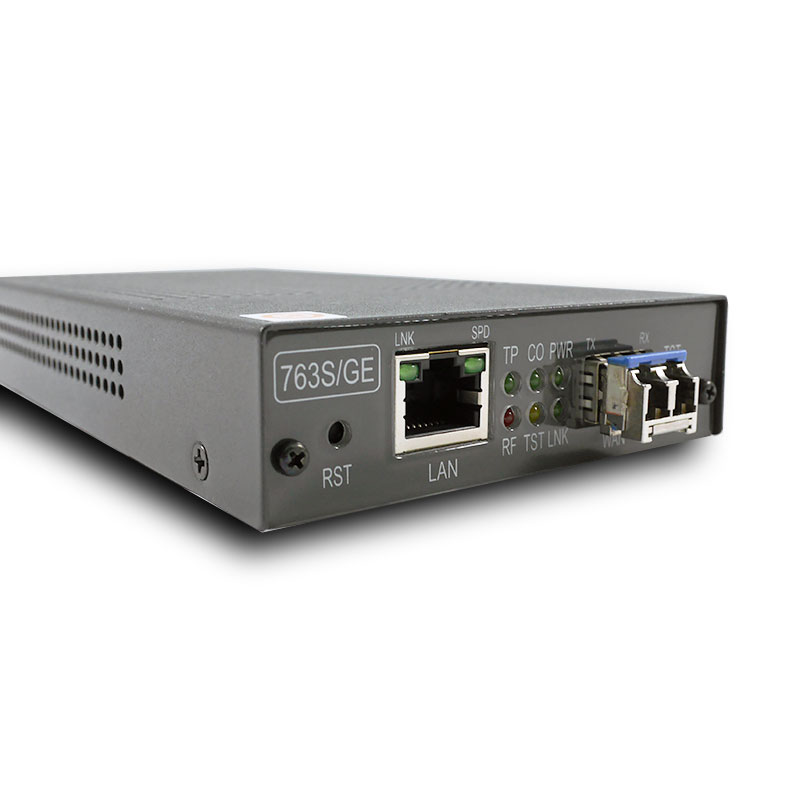

Fiber Ethernet Converter (ENTU763) FE and GE are so called Ethernet Access Devices (EAD), Ethernet Media Data Converter (MDC) or Ethernet Fiber-optic Modem (FOM). It is a manageable type media converter that is inter operable with Ethernet Access Chassis (iEAC-16). At the customer premise allows the operator to reach customer over fiber, while still providing a standard Ethernet copper connection.

ENTU 763 FE Series: End-of-Life

ENTU 763 GE Series: December 31, 2021 End-of-Sale


Request A Quote  Datasheet

  • Features

    • Comply with IEEE 802.3, 802.3u, 802.3ab and 802.3z Ethernet Standard
    • Support IEEE 802.3ah In-band and TS 1000 OAM management
    • Front panel test button to trigger auto loopback test
    • Support SFP DDM (Digital Diagnostics Monitoring)
    • Support WDM Bi-directional SFP module with specific wavelength for various distance
    • Support copper line cable diagnostics feature Comply with IEEE 802.1q Tag VLAN
    • Support Q-in-Q function
    • Maximum Frame size 9K bytes
    • Ethernet bandwidth Control
    • Support Flow Control, Auto-Cross over for MDI/MDIX on TP port LED indicators for ease of network diagnostic
    • Support Link status Transparent Prompt indication on network failure
    • Firmware upgrade via HTTP
    • Built-in IP-based WEB GUI configuration and maintenance Centralized management for CO-side equipment
  • Specifications

    • ENTU 763S/GE, stand alone Gigabit Ethernet NTU
    • ENTU 763S/FE, stand alone Fast Ethernet NTU
    • iEAC-16, 2U 19” Rack, 16 slots for line card
    • Controller with NMS/WEB agent (MCU-16)
    • Hot Swappable Redundant AC/DC Power Modules (iEAC-AC or iEAC-DC)
    • Green FAN facility, ON and OFF by internal temperature (iEAC-FAN)
    • Line card ENTU 763C/FE, ENTU 763C/GE
    Network Interface
    • Connector type: SFP-LC
    • ENTU 763S/FE: 100Base-FX SFP modules
    • ENTU 763S/GE: 100Base-FX or 1000Base-X SFP modules
    • Support SFP DDM (Digital Diagnostic Monitoring)
    • Temperature, Voltage, Current, Tx Power, Rx Power
    • Support 1000Base-LX, 20Km, Dual WDM, for redundant fiber link protection
    • For detailed wavelength and distance of SFP modules, please refer to SFP Transceivers datasheet
    User Interface
    • Connector type: Shield RJ-45 jack
    • ENTU 763S/FE: 10Base-T/100Base-Tx
    • ENTU 763S/GE: 10Base-T/100Base-Tx/1000-BaseT
    • Auto-MDI/MDIX detection
    • Auto-negotiation for speed and duplex
    • Full duplex / Half duplex support
    • Support copper line cable diagnostics feature
    • Complies with IEEE 802.1q Tag VLAN (including Q-in-Q)
    • Ethernet bandwidth control and support Jumbo frame
    Management & OAM Functions
    • Configuration via craft port VT-100 and WEB GUI

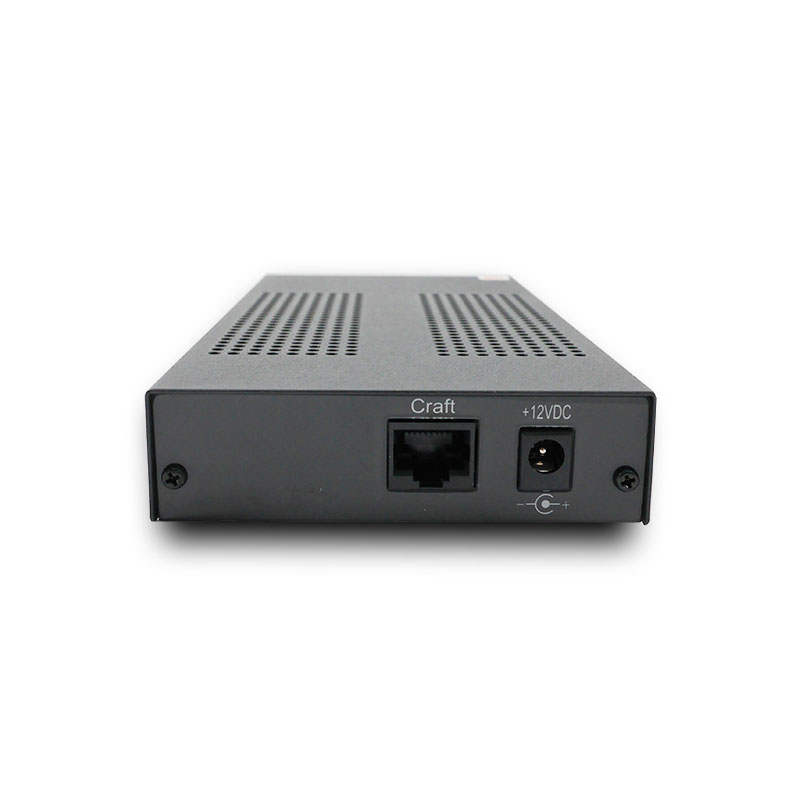

    • Console: RJ45 connector (RS232C)
    • HTTP firmware upgrade
    • RMON counter
    • Front panel test button for easy loop healthy testing
    • Reset button back to factory default
    • Support IEEE 802.3ah Link Layer OAM
    • Auto discovery
    • Link monitoring
    • Remote loopback test
    • Remote fault detection
    • Link Fault Reflection
    • Dying Gasp
    • Critical Event
    • Support TS-1000 OAM
    • Loopback test
    • Reset remote device
    • Get remote device information
    • Remote port setting
    LED Indicators
    • ENTU series:


    Power Requirement
    • AC/DC, DC/DC external power adapter (12V, 0.5A)
    • Power consumption:

    ENTU 763S/FE = 1.8W
    ENTU 763S/GE = 3.3W

    • ENTU 763S: 87(W) x 172(D) x 24(H) mm
    Operating Environment
    • Operation Temperature: 0 oC ~ 50 oC
    • Storage Temperature: -20 oC ~ 70 oC
    • Humidity: 90%, non-condensing

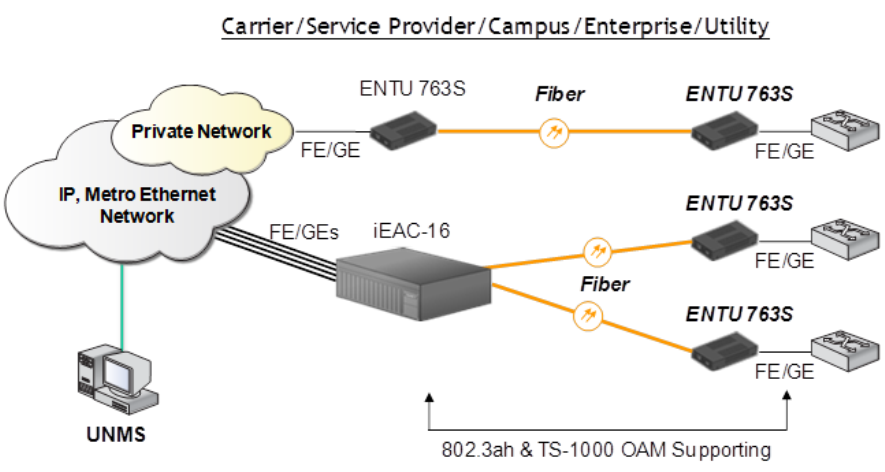

  • Application
