Ethernet Access Chassis – 16 slots Redundant Power

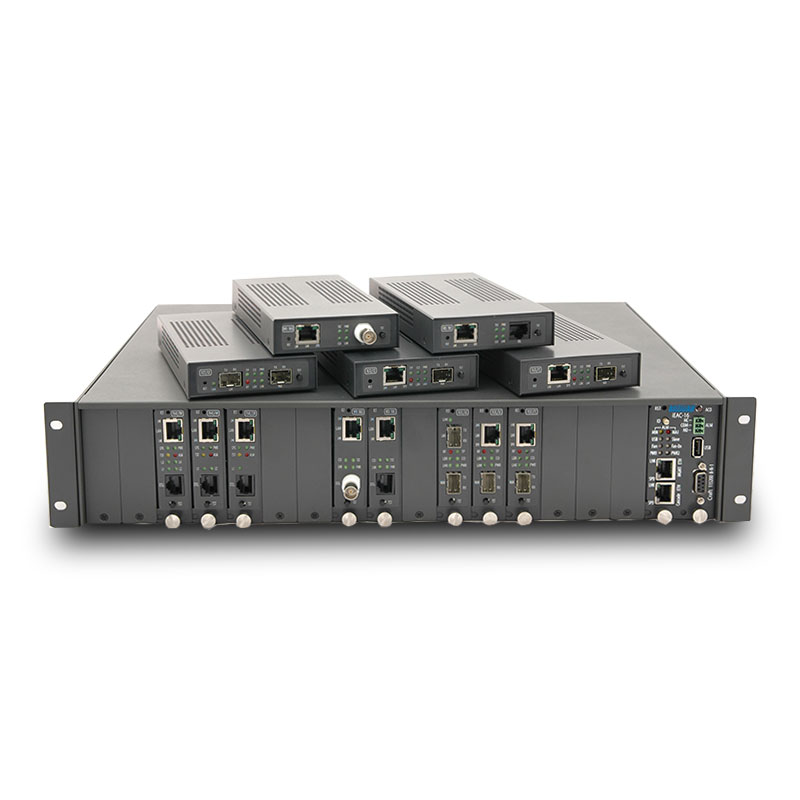

Ethernet Access Chassis (iEAC-16), is a 2U high 19-inch chassis containing a controller MCU-16, redundant AC/DC power modules and 16 slots for various types of line cards. Including TDM over IP (FNTU), Media Converter (ENTU) and G.SHDSL.bis (SNTU), all modules are hot swappable, managed through Web GUI, CLI (Telnet and craft port). By using different types of line card, iEAC-16 is able to extend Fast/Gigabit Ethernet traffic on 10/100/1000 Base-TX over 100/1000 Base-FX optical fiber, and G.SHDSL.bis line with 2W/4W/8W.

Request A Quote  Datasheet

Category:
  • Feature

    • Designed for high density Ethernet extender installations in central offices or enterprises
    • Carrier Level Ethernet network over Optical fiber, G.SHDSL.bis and VDSL2 copper lines
    • Manageable chassis: Web GUI, CLI
    • Provides Fiber-Optic network traffic connection and conversion
    • Multi-pair copper bonding for double or quadruple bandwidth
    • Enables link layer OAM on the networks and equipments
    • Link Diagnostics with one push button
    • Hot swappable for all cards, Redundant powers and Green FAN available
  • Specifications

    System Feature

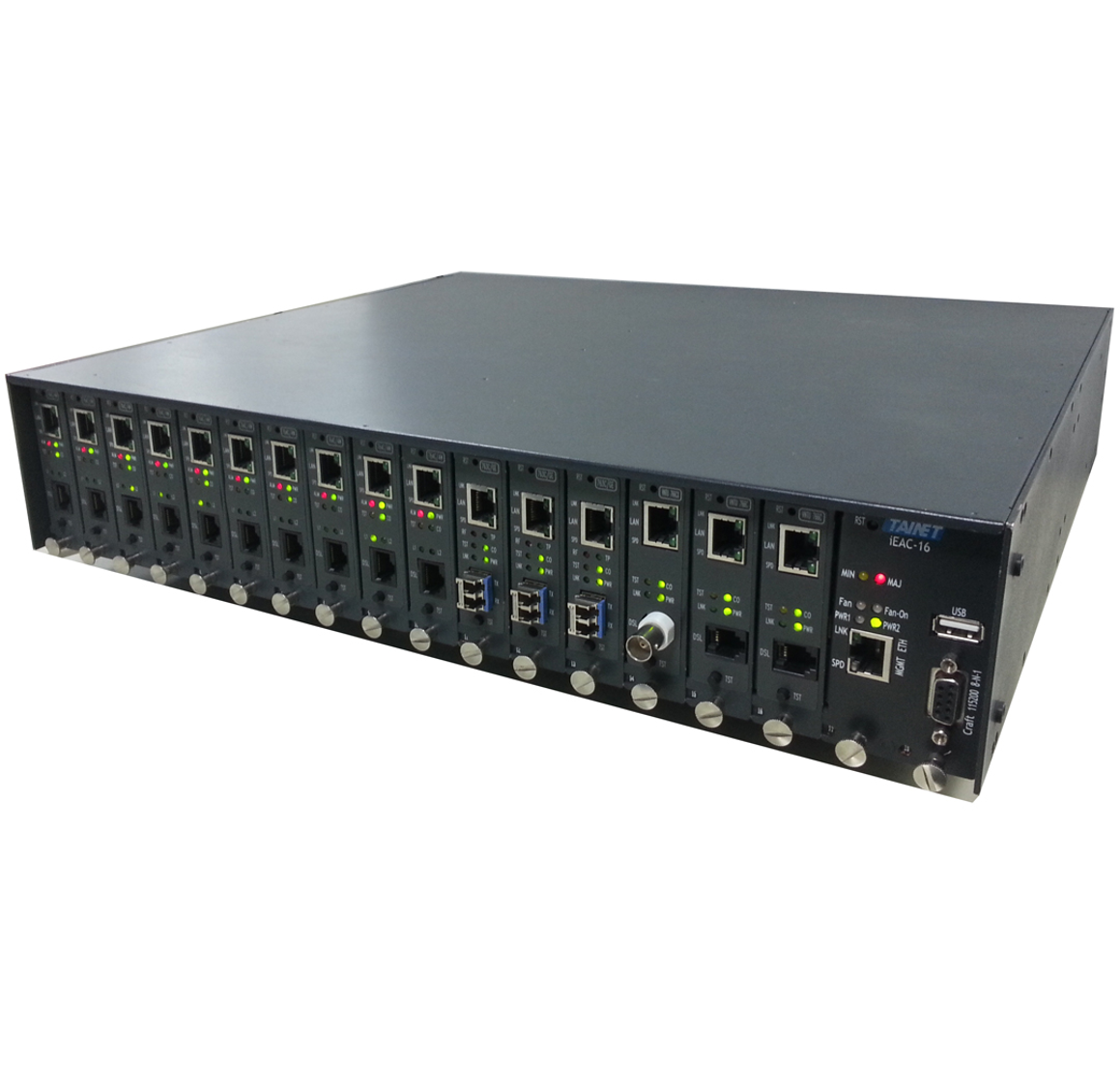

    • 2U high, 19” chassis with 16 slots for line cards
    • Real Time Clock and Reset button
    • Power and Fan alarm LED indicators
    • Dual Hot-Swappable AC/DC power for load sharing and redundancy
    • Green Fan facility, turns ON and OFF with internal temperature
    • Auto detection on available line cards and chassis
    • All plug- in cards are hot swappable
    System cards
    • iEAC-16:Intelligent Ethernet Access Chassis

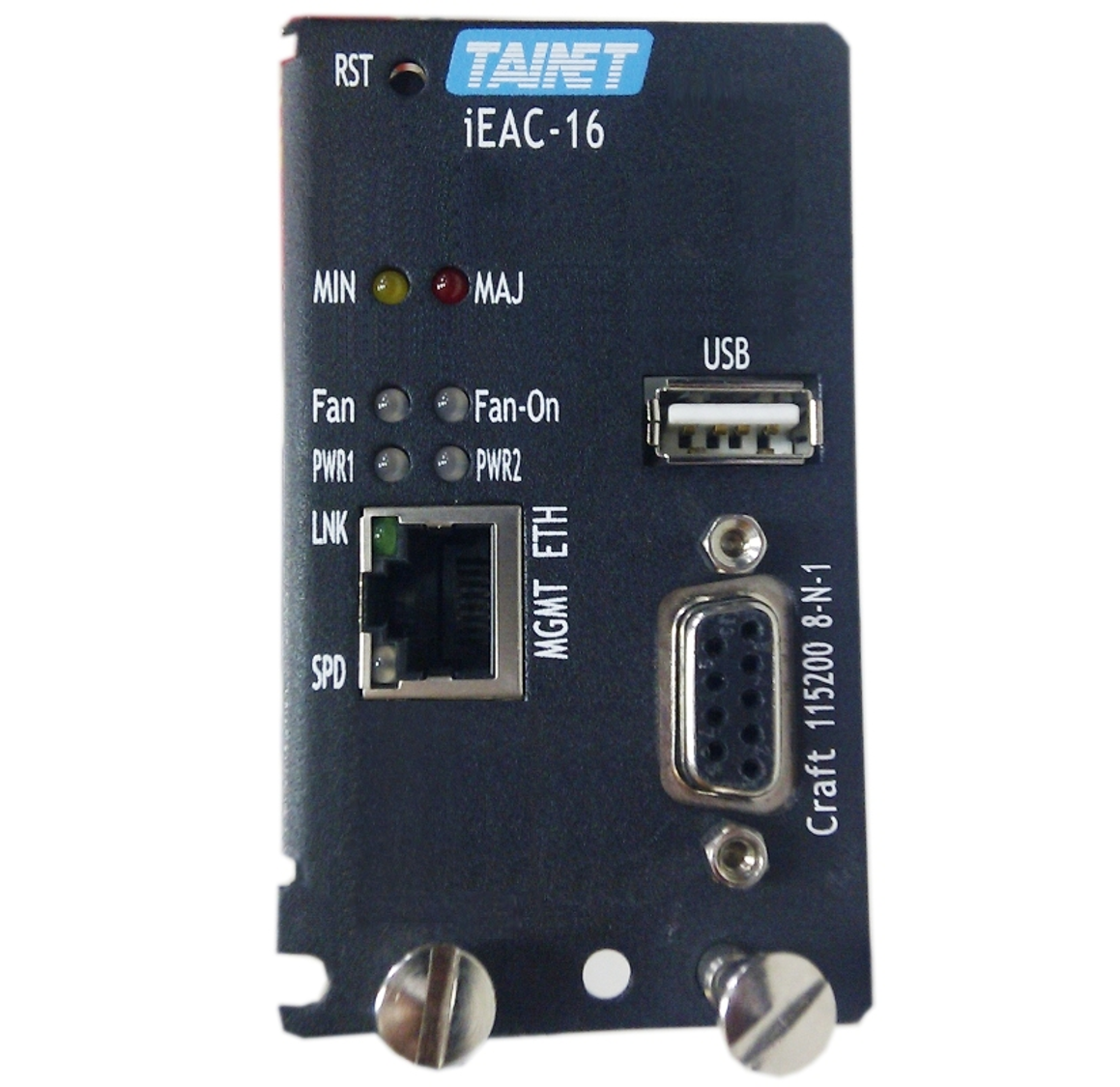

    • MCU-16:Controller of iEAC-16 with NMS/WEB agent
    • iEAC-AC:AC Power Module
    • iEAC-DC:DC Power Module
    • iEAC-FAN:FAN Module

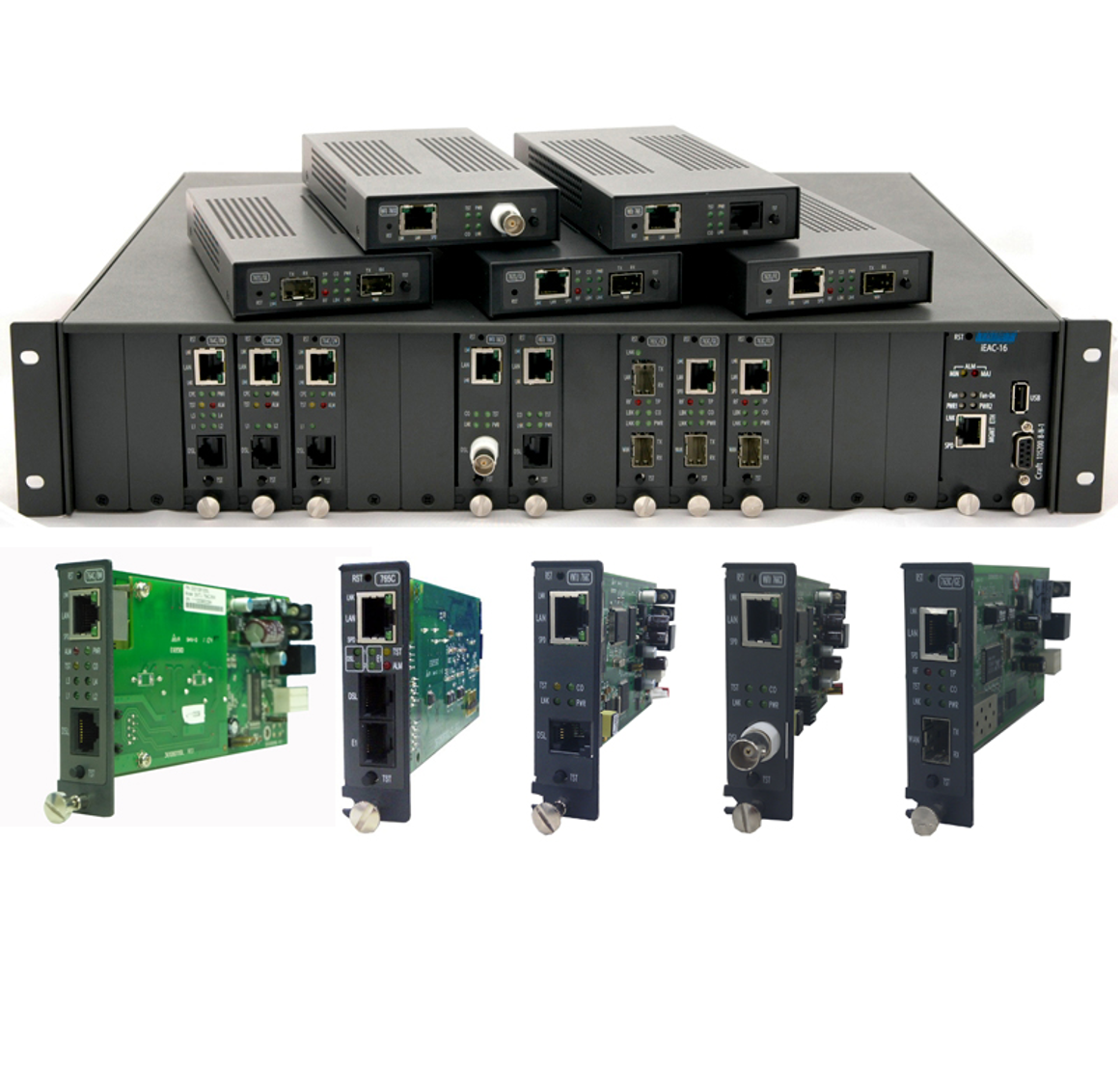

    Line cards
    • FNTU 761C, 761CU:Optical Fiber MUX, Gigabit Media Converter with 4 Balanced/ Unbalanced E1
    • ENTU 763C/GE:1000Base-X SFP to 10/100/1000Base-TX Ethernet
    • SNTU 764C/2W, 764C/4W, 764C/8W:G.SHDSL.bis 2/4/8-wire RJ-45 to 10/100Base-TX Ethernet
    • SNTU 765C/4W:G.SHDSL.bis 4-wire RJ-45 to 10/100Base-TX Ethernet and E1 interface
    • SNTU 764FC/2W, 764FC/4W, 764FC/8W:G.SHDSL.bis 2/4/8-wire RJ-45 to 10/100 Base-TX Ethernet
    • ENTU 773C:Dual optical link Gigabit Ethernet NTU
    • ENTU 783C (Up to 8 Cards in iEAC-16):Triple optical link 10G Ethernet NTU
    Management & OAM Functions
    • Management with user privilege:Web GUI, CLI (Telnet, RS-232 craft port)
    • Management IP can be set as static or dynamic IP
    • Supports VLAN for 802.1Q tagging/un-tagging
    • System logs and SNTP time synchronize to RTC
    • Built-in non-volatile memory to store line cards, remote units, PM data and chassis configurations
    • DSL/ Optical Link status on web management
    • SNMP alarm trap
    • Alarm LED indicator monitoring
    • Firmware upgradable for system and Line cards
    LED Indicators
    • MCU-16:MAJ/MIN ALM, FAN, FAN ON, PWR1, PWR2, ETH LNK/ SPD
    • FNTU 761C:PWR, LNK, TST, ALM, E1, LAN Tx/Rx, LNK/ SPD
    • ENTU 763C:PWR, CO, LNK, TST, RF, TP, LAN LNK/SPD
    • SNTU 764C:PWR, CO, ALM, TST, L1~L4, ETH LNK/SPD
    • SNTU 765C:ALM, TST, DSL1~2, E1, ETH LNK/SPD
    • ENTU 773C:PWR, ALM, LNK1, LNK2, UTP LNK/SPD, DPX
    • ENTU 783C:PWR/ ALM、Link 1 ~ 4
    Power Requirement

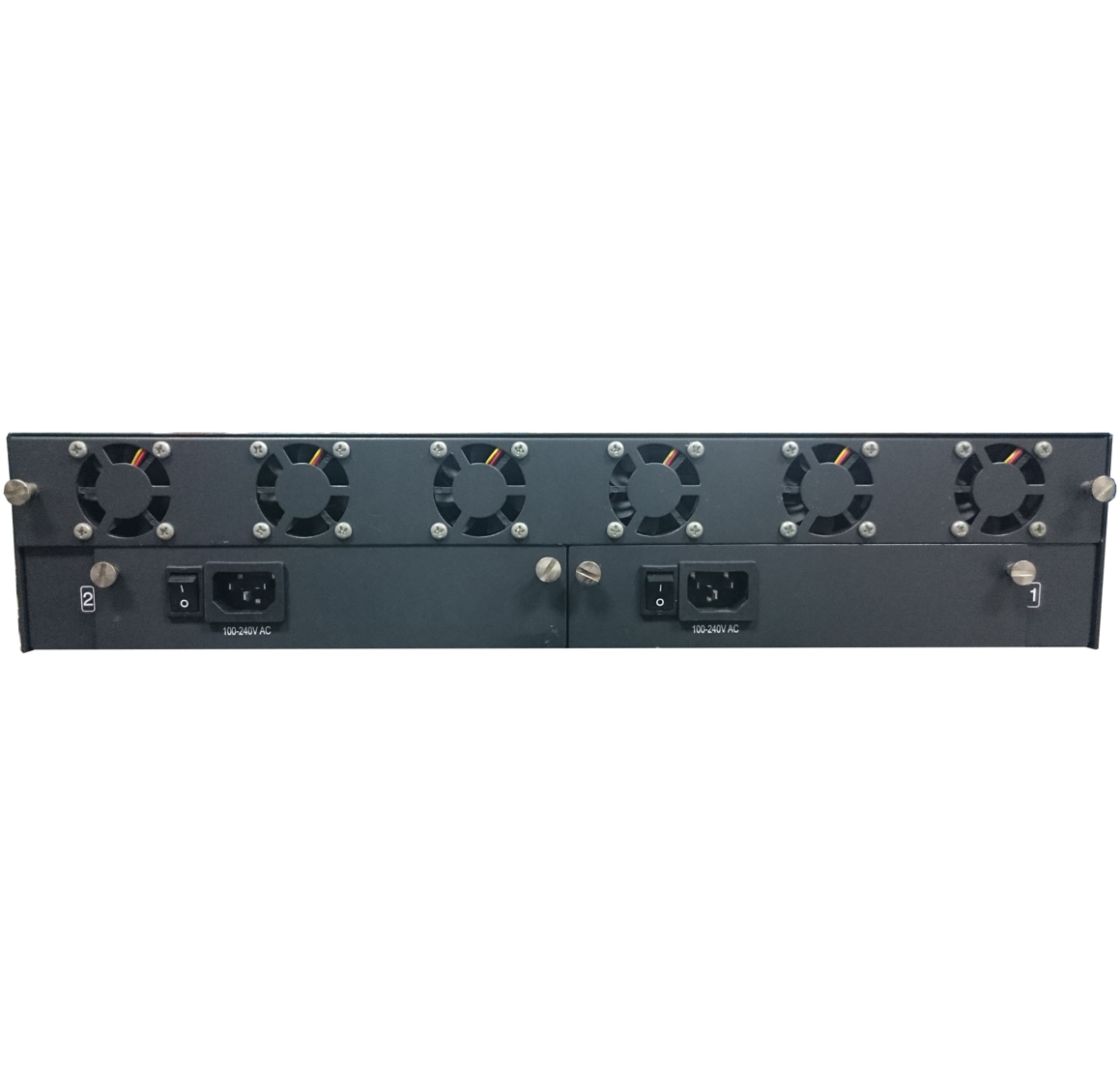

    • Hot Swappable Redundant Power Modules
    • iEAC-AC:AC Power Input: 100 ~ 240V, 50/60Hz (160W)
    • iEAC-DC:DC Power Input: -36 ~ -72V (160W)
    Dimension
    • iEAC-16: 480 (W) x 366 (D) x 89 (H) mm
    Operating Environment
    • Operation Temperature:0 ºC ~ 50 ºC
    • Storage Temperature:-20 ºC ~ 70 ºC
    • Humidity:90%, non-condensing
