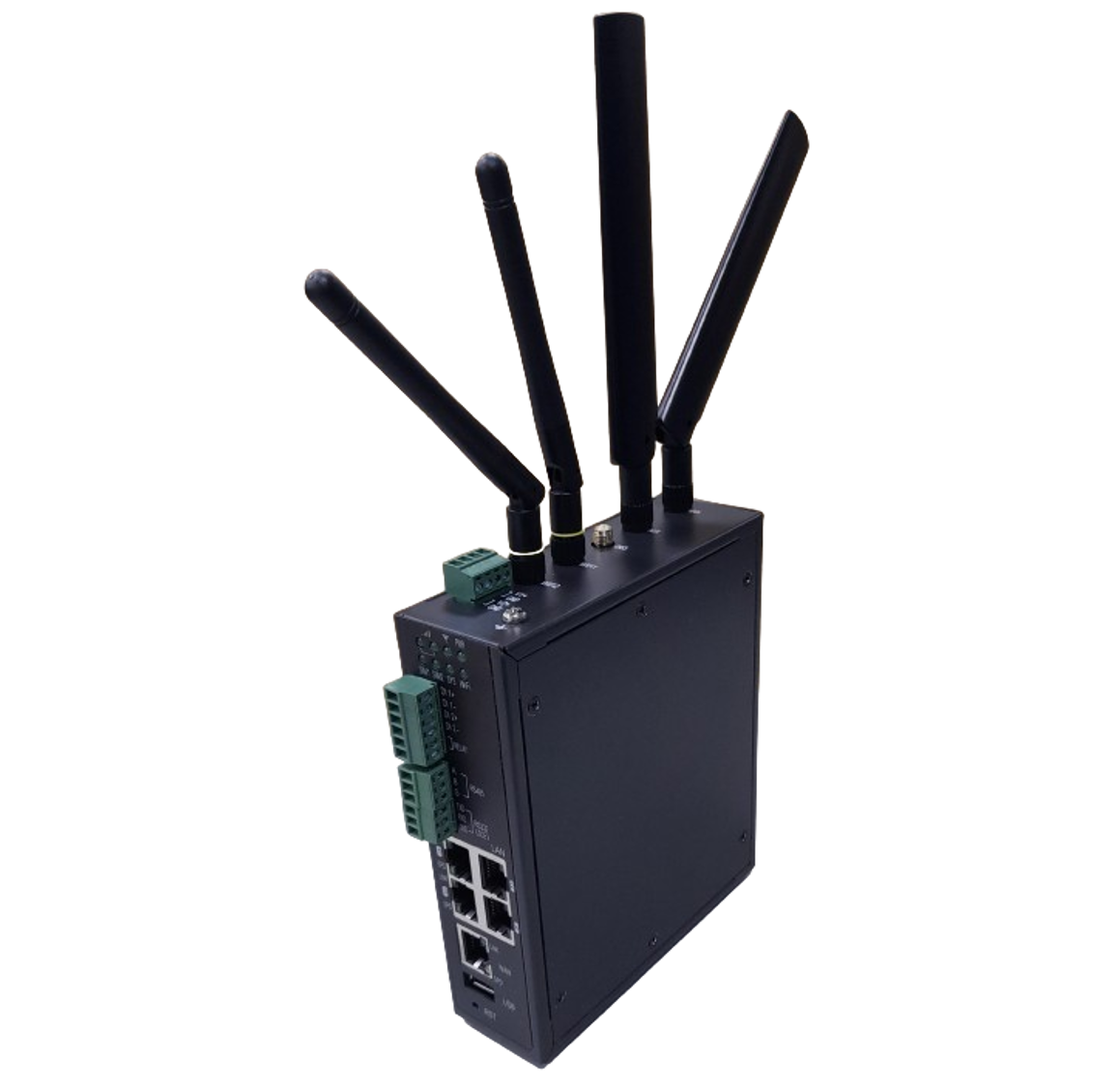

Industrial 4G LTE Router IAD200
Industrial 4G LTE Router IAD200 - Image 2
Industrial 4G LTE Router IAD200 - Image 3

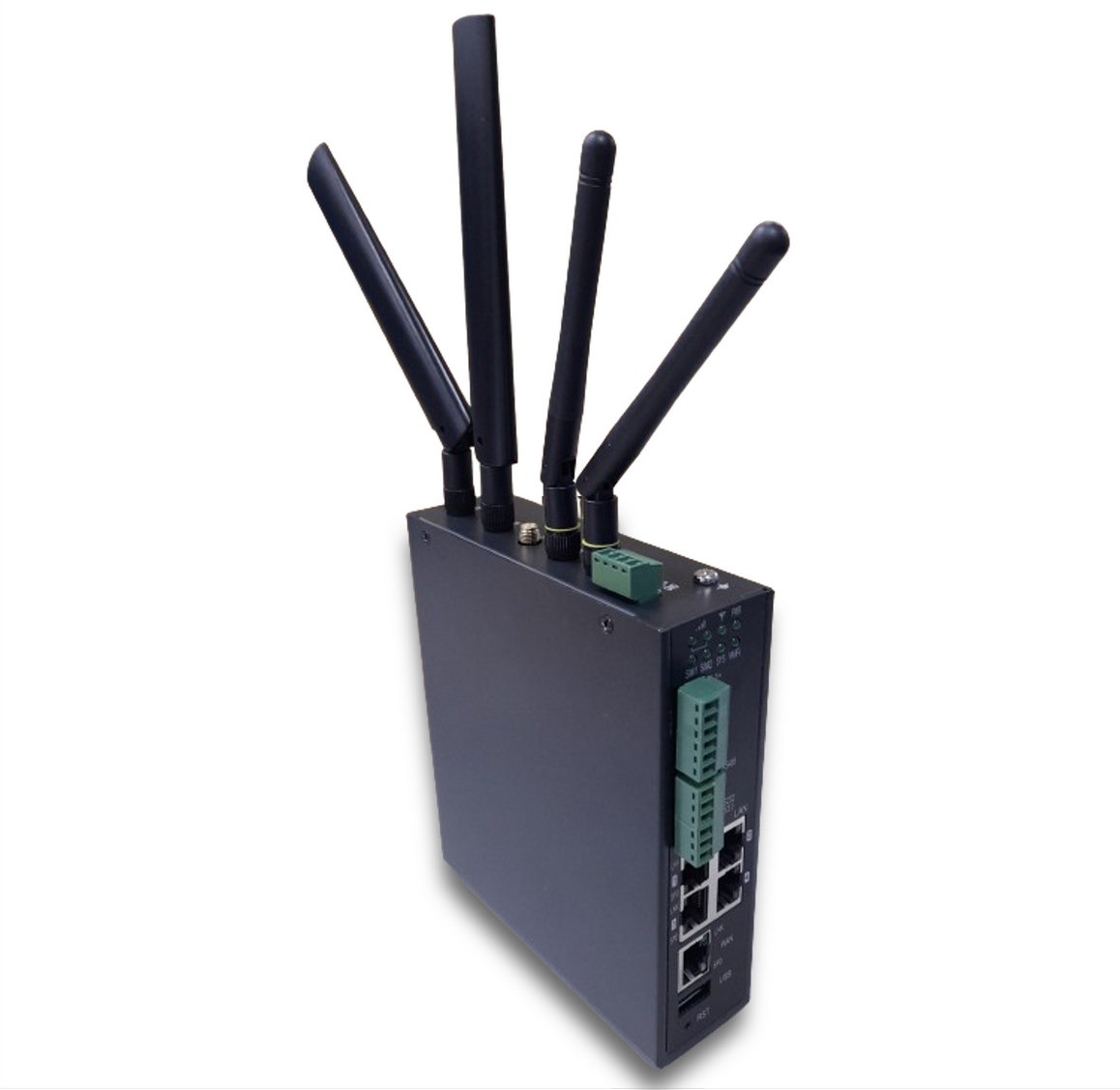

Industrial 4G LTE Router IAD200 - Image 4
Industrial 4G LTE Router IAD200 - Image 5

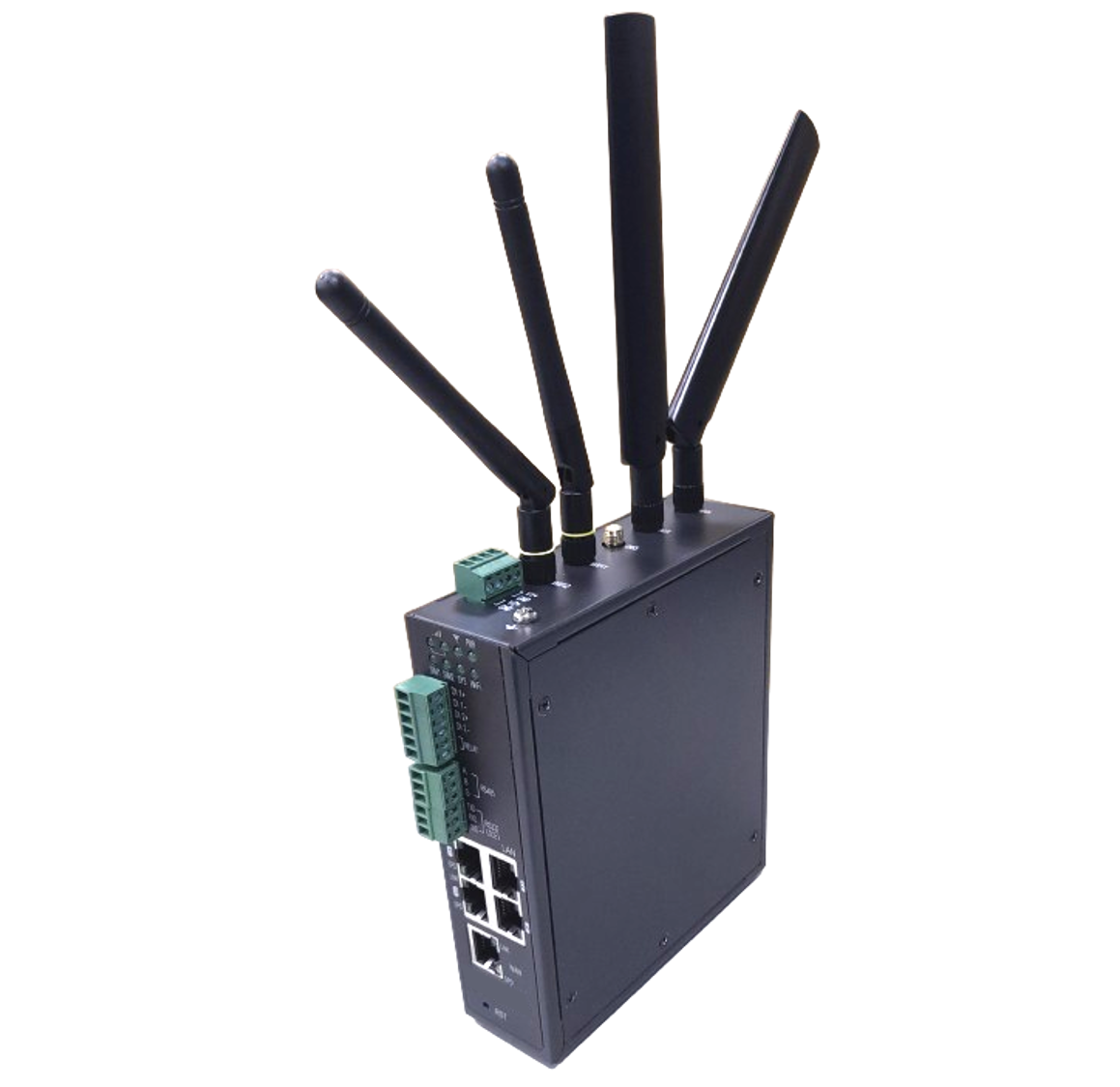

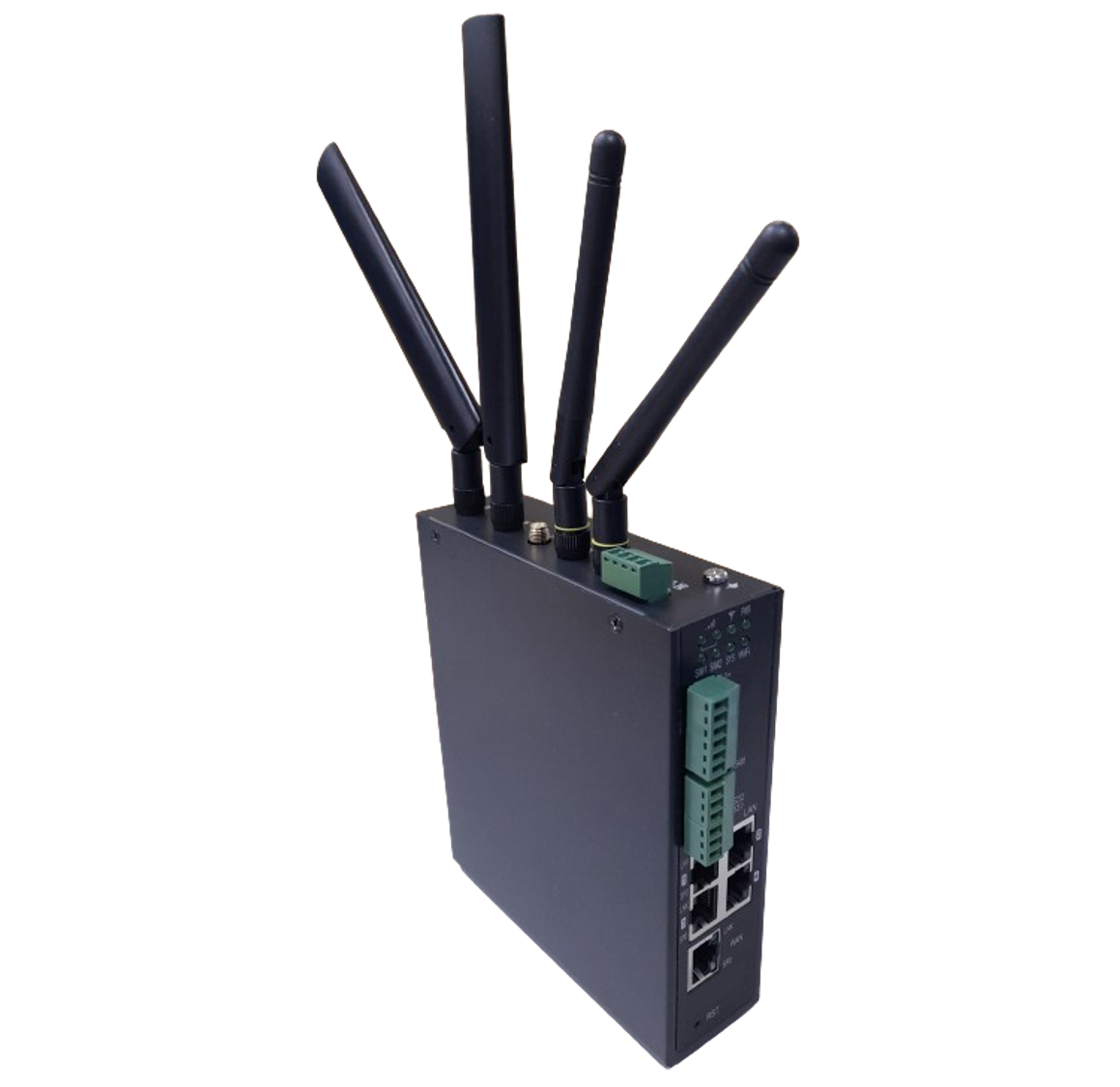

Industrial 4G LTE Router IAD200

IAD200 is a highly-reliable and secure gateway combines 802.11ac and 4G LTE technologies to provide flexible wireless network connectivity. It supports with five Gigabit Ethernet ports (4 LAN and 1 WAN) and RS232/ RS485 interface for Modbus application. DIN-Rail mounting, wide operating temperature range from -40°C to 70°C, and IP30 housing, the IAD200 is a convenient yet reliable solution for any industrial wireless application.
IAD200 allows users to implement encrypted VPN tunnels and other basic Wi-Fi routing capabilities. With IEEE 802.11ac dual band radio it can operate either 5GHz or 2.4GHz bands. IAD200 adapts MIMO technology with smart antenna transmission and reception for 2T2R. It also supports AP/ Client modes to diverse for most of wireless application.
The LTE CAT4 up to 150Mbps for downlink and 50Mbps for uplink data transfer. It also supports multi-band connectivity including LTE-FDD/ LTE-TDD/ HSPA+/ UMTS/ EDGE/ GPRS/ GSM for a wide range of applications and machine to machine communication.
Request A Quote  Datasheet
Category:



  • Product Highlights

    Reliable and Uninterrupted Transmission
    • The dual-SIM design supports mobile transmission backup and ensures the stability and reliability of the network through the failover management mechanism of multiple Internet interfaces. The communication between the remote device and the monitoring center is uninterrupted, maximizing uptime.
    Information Security Protection
    • Supports TACACS+ to provide independent authentication, authorization and accounting services, and supports IPSec to establish secure network connection communications to protect your data access.
    Flexible Application with Multiple Interfaces
    • Can be connected to Ethernet, RS485, RS232, DI, and Relay interfaces, and uses the common communication protocol Modbus TCP to communicate with peripheral devices in various field applications.
    Flexible Wireless Network
    • Supports IEEE 802.11a/b/g/n/ac, can configure Wi-Fi as a WAN or access point, and provides Wi-Fi security WPA2-PSK (AES).
    Industrial Grade Design
    • The IP30 fanless metal casing design supports harsh operating temperatures from -40°C to 70°C, and provides a backup mechanism for dual DC power inputs.
    Easy Remote Management
    • Provides mass configuration, device management, and firmware upgrades through TFTP/HTTP to quickly maintain and manage remote application devices.

  • Product Specifications

    Model
    • IAD200-45M：4G LTE/ Wi-Fi 5/ Modbus
    • IAD200-40M：4G LTE/ Modbus

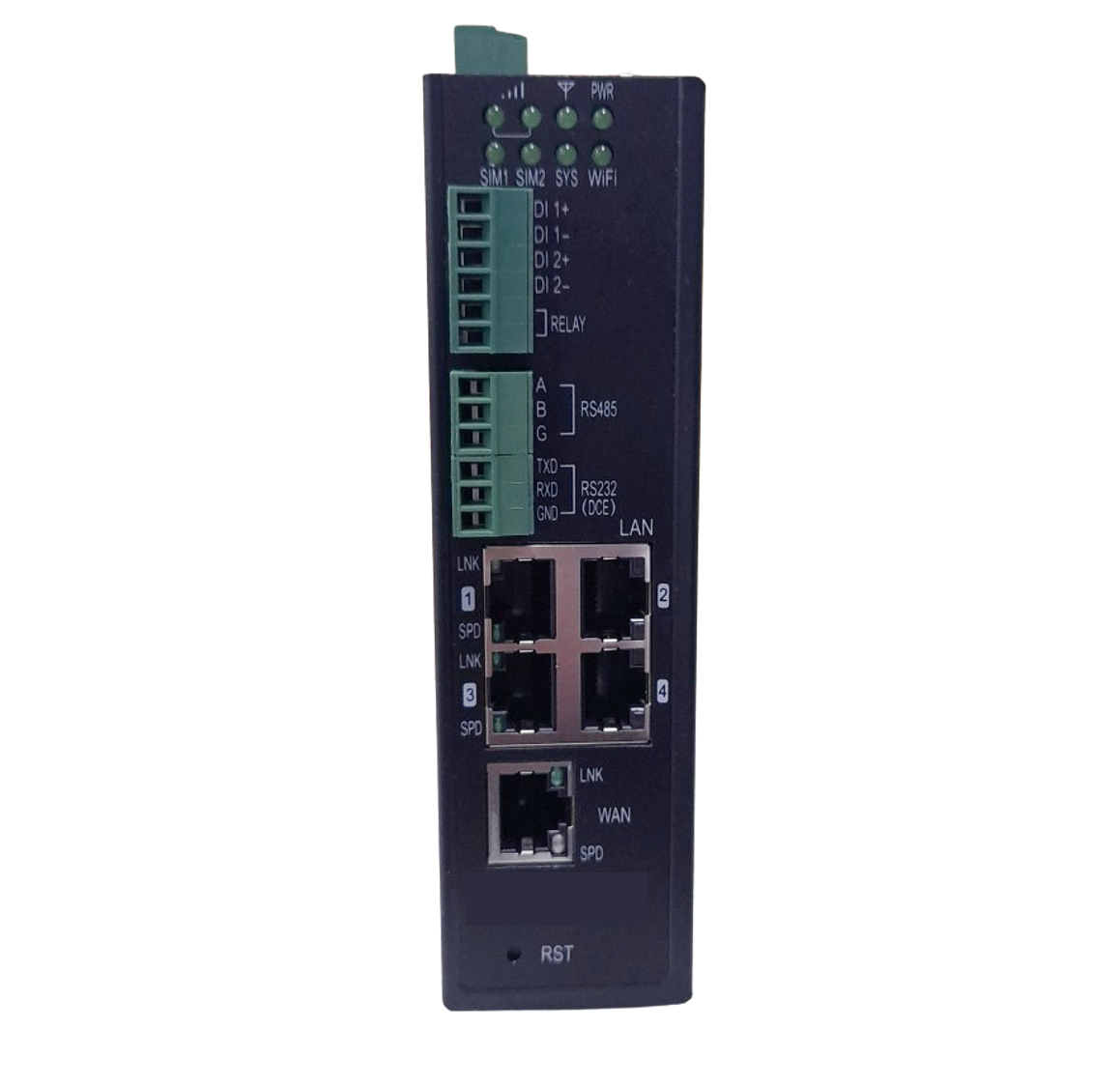

    Physical Interface
    • LAN port：4 x 10/100/1000BASE-T RJ45, auto-negotiation, auto MDI/MDI-X
    • WAN port：1 x 10/100/1000BASE-T RJ45, auto-negotiation, auto MDI/MDI-X
    • Serial port：1 x RS232, 1 x RS485
    • I/O port：2 x DI (isolated), 1 x Relay
    • Reset Button：for restoration to factory default
    WLAN Interface
    • Standard：IEEE 802.11a/b/g/n/ac
    • Module Brand：Realtek
    • Module Model：RTL8822CE
    • NCC ID：CCAI18LP2010T7
    • Operating Frequency 2.4GHz：2400 ~ 2483.5 MHz
    • Operating Frequency 5GHz：5150 ~ 5725 MHz
    • Mode：AP, Client mode
    • Encryption：WPA2-PSK (AES)
    • Antenna connectors：2 x PR-SMA/ 50ohm
    Cellular Interface
    • Frequency (SA)：
         - LTE CAT4 (Uplink up to 50Mbps, Downlink up to 150Mbps)
         - LTE-FDD: B1/ B2/ B3/ B4/ B5/ B7/ B8/ B28/ B66
         - WCDMA: B1/ B2/ B5/ B8
         - GSM/ GPRS/ EDGE: 850/ 900/ 1800/ 1900MHz
         - GNSS support (Optional)

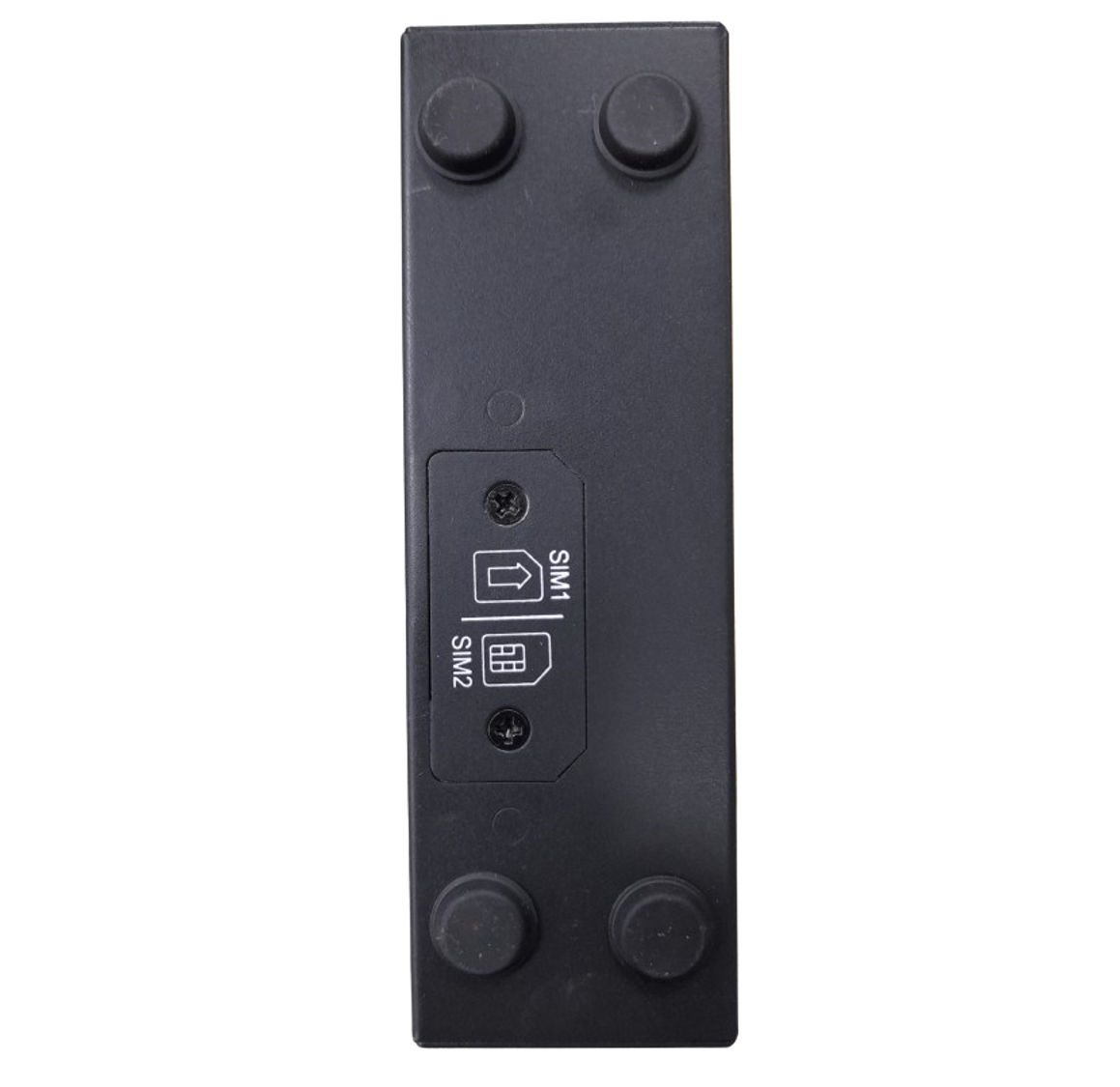

    • SIM slot：2 x nano SIM

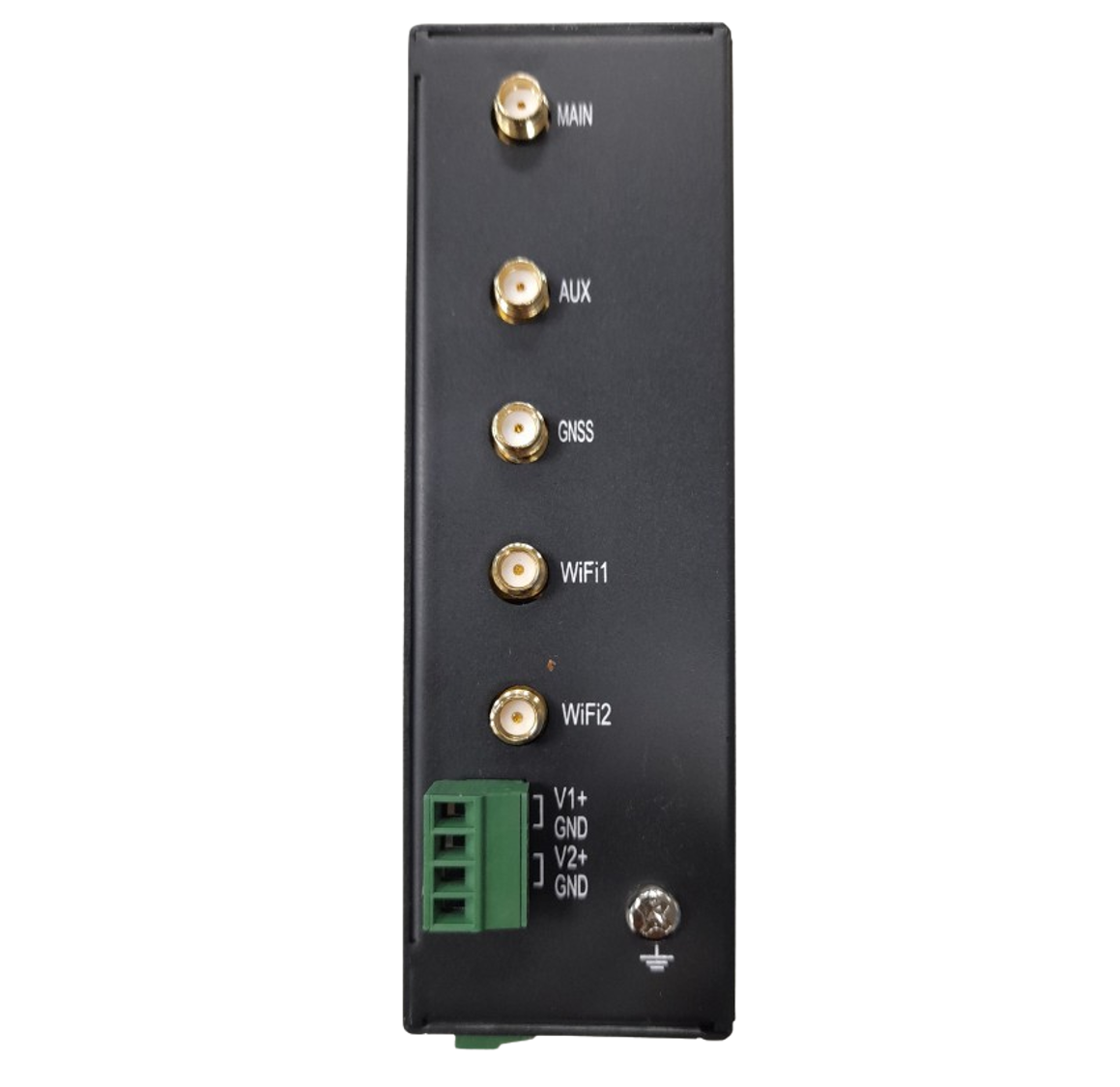

    • Antenna connectors：
         - 2 x SMA/ Cellular interface/ 50ohm
         - 1 x SMA/ GNSS interface/ 50ohm
    Network Functions
    • Protocol：IPv4, DDNS, STP
    • Packet Statistics：RMON counter
    • WAN connection：DHCP client, static IP、PPPoE
    • Auto Provision：CWMP/ TR-069
    • Dynamic routing：RIPv1/v2
    • Industrial & IoT：Modbus TCP Server, Transparent (RTU over TCP), MQTT
    • Diagnostic Tool：Ethernet Statistics, Ping, TcpDump
    Management Functions
    • Switch management interface：Console/ Telnet CLI, Web management, SSHv2 secure access
    • Firmware upgrade：TFTP/ HTTP
    • RTC：SNTP and embedded RTC
    • Access Log：System Access Log display and output file
    • Configuration：
         - SMS and SNMP Trap alarm reporting
         - CWMP/ TR-069 Provision
         - User Profiles backup and restore
    • Monitoring：RMON counter
    Security Features
    • VPN：IPSec, WireGuard
    • NAT：
         - Virtual Servers/ Port Forward
         - Demilitarized zone (DMZ)
         - NAT Pass-through
    • Firewall:
         - MAC, IP, URL for Black & White list filter
         - Discard WAN Access/ Ping
    • Transmission：HTTPS/ TLS/ 1.2/ 1.3
    • AAA：TACACS+ for AAA
    • Access level：Administrator, Operator and Monitor
    • Anti-camouflage attack：Lock IP and delay login
    • Disable Interface：Telnet, SSH, HTTP and HTTPS
    Power
    • Input：3.5mm Terminal block with external DC dual input
    • Power range：DC 9 ~ 48V
    • Power consumption：Less than 10W
      • Environmental Limits
      • Operation：-40°C ~ 70°C (-40 to 158°F)
      • Storage：-40°C ~ 85°C (-40 to 185°F)
      • Relative humidity：5 ~ 95% (non-condensing)
      Regulatory
      • NCC：CCAF254G023AT1, CCAF254G0230T2
      • EMC：CNS 15936 (equivalent to CISPR 32)
      • Cellular：EN 301 908-1
      • WLAN：
           - EN 300 328 (2.4GHz ISM)
           - EN 301 893 (5GHz RLAN)
      • Safety：CNS 15598-1
      Mechanical
      • LED indicator：PWR, SYS, wireless, Wi-Fi, SIM, WAN/LAN – SPD/LNK
      • Dimensions：W 40mm x D 123.5mm x H 141mm
      • Weight：560g
      • Casing：IP30 iron case, DIN-Rail design
  • Application (1)

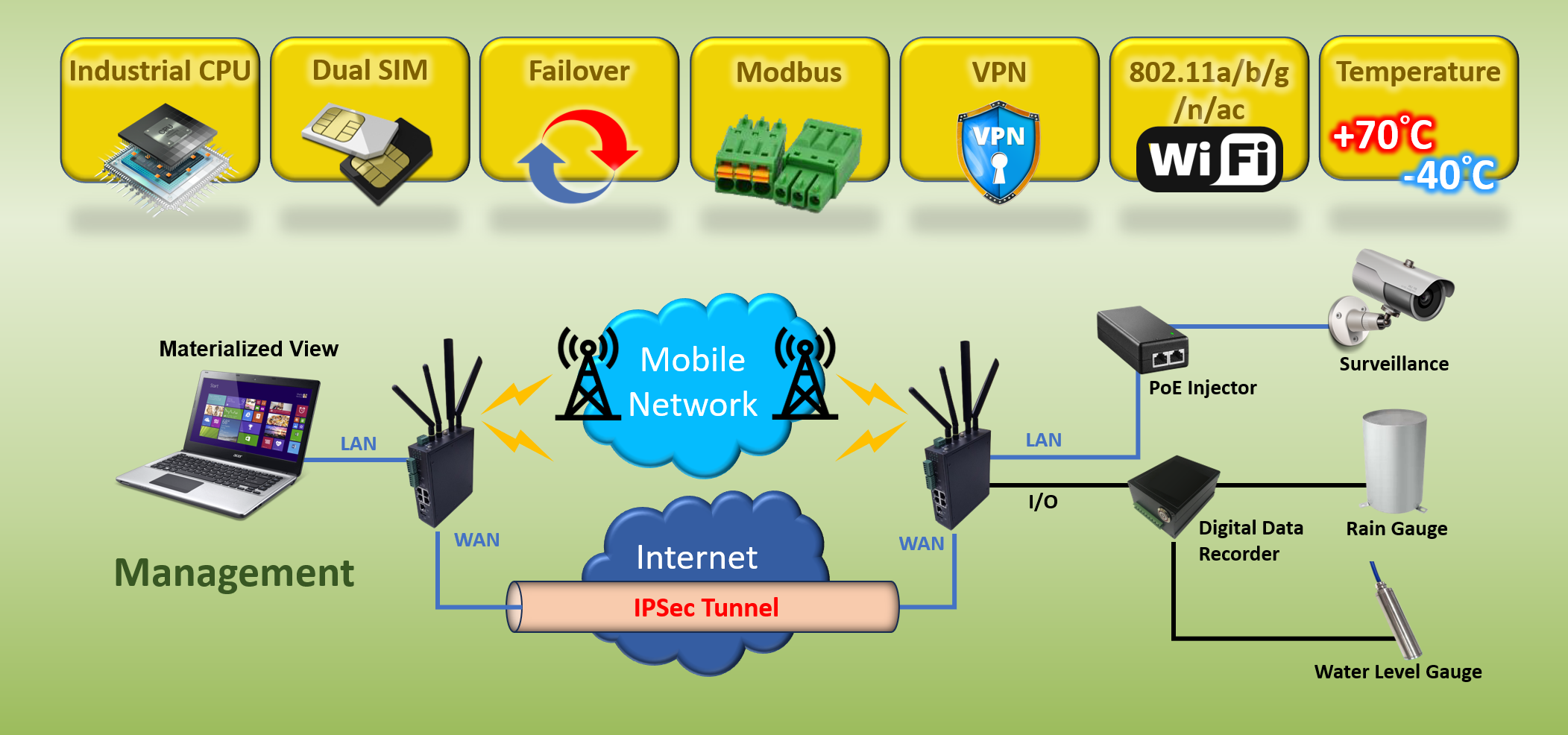

    Application (1)

  • Application (2)

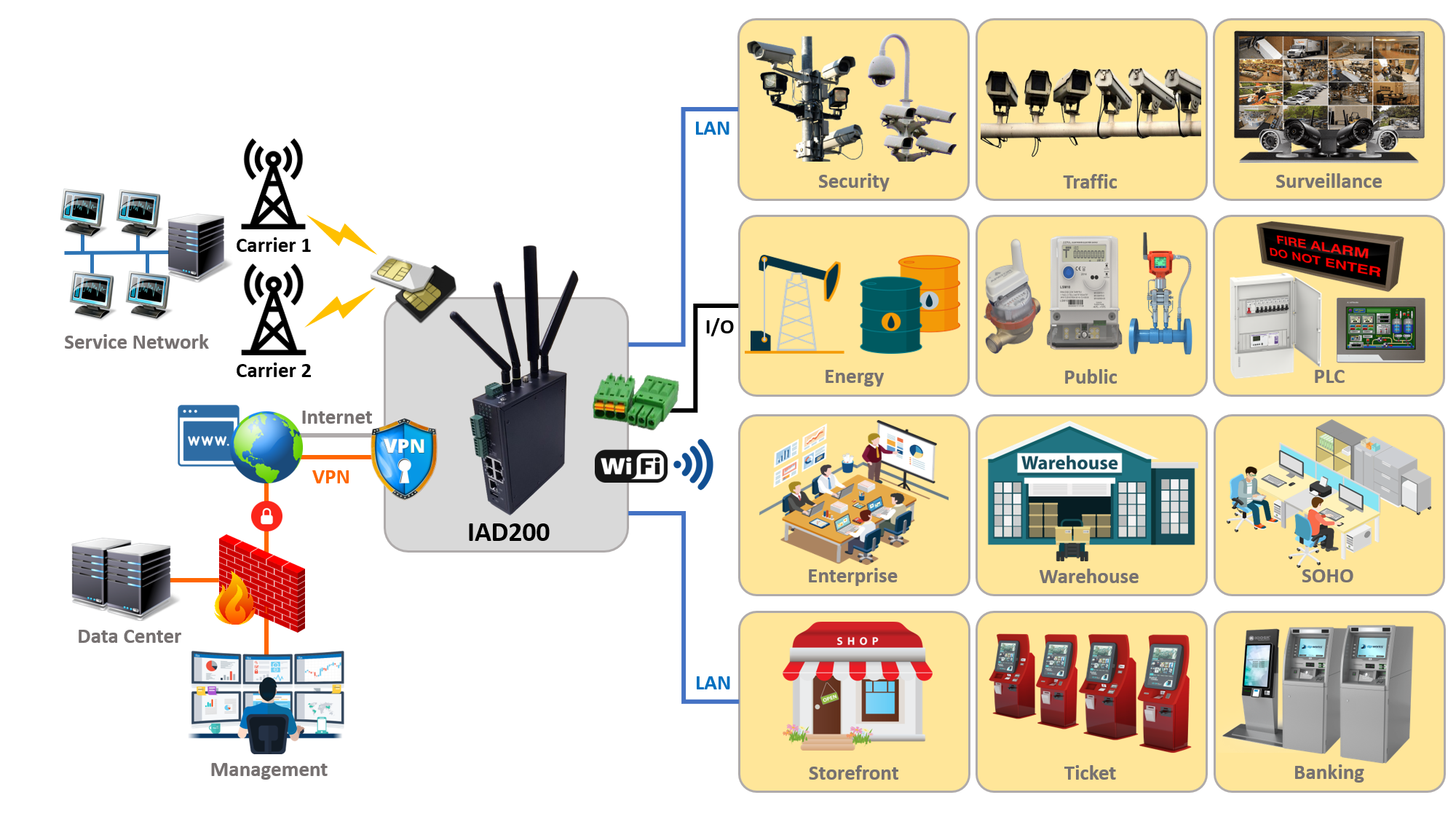

    Application (2)
