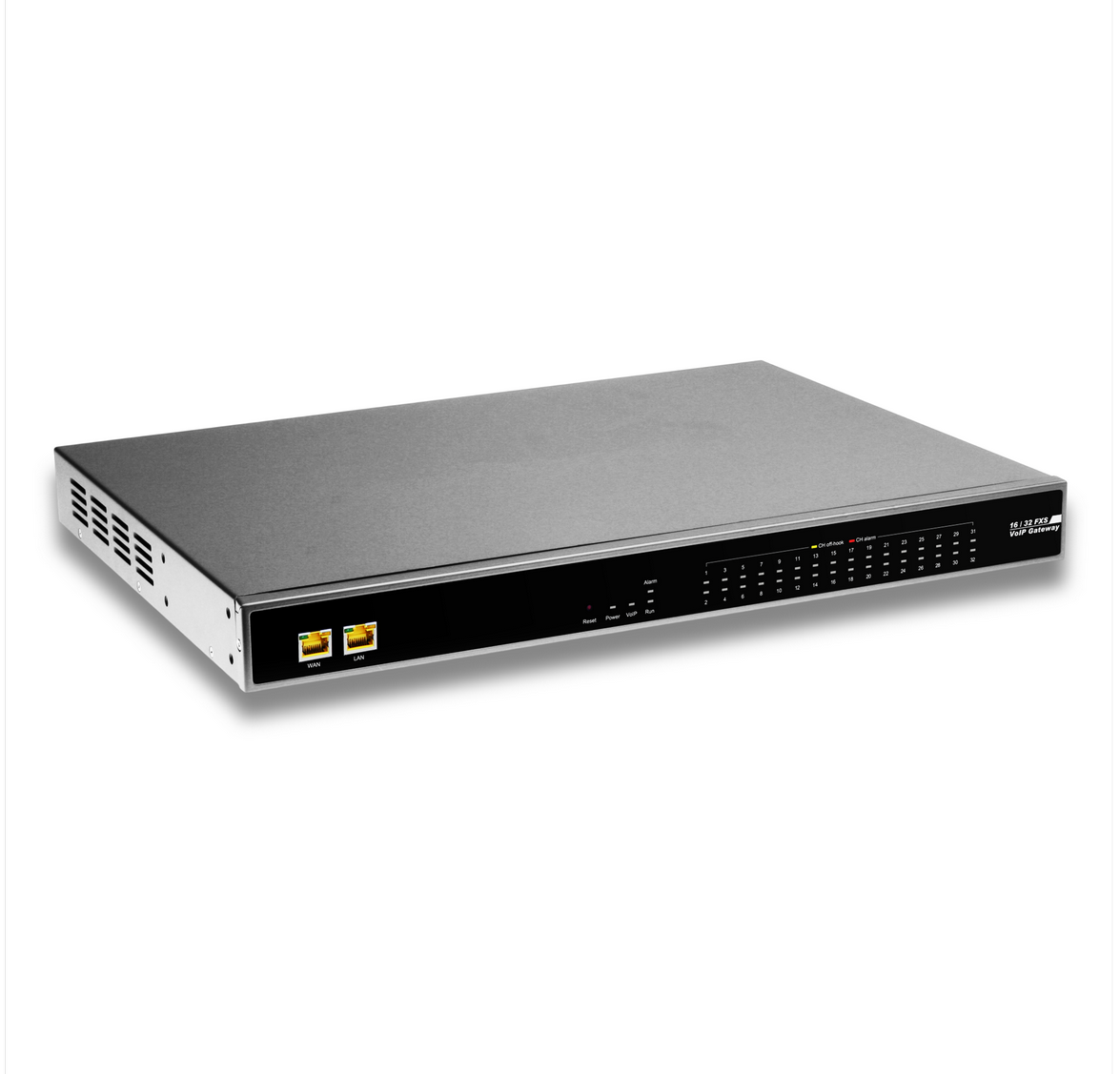

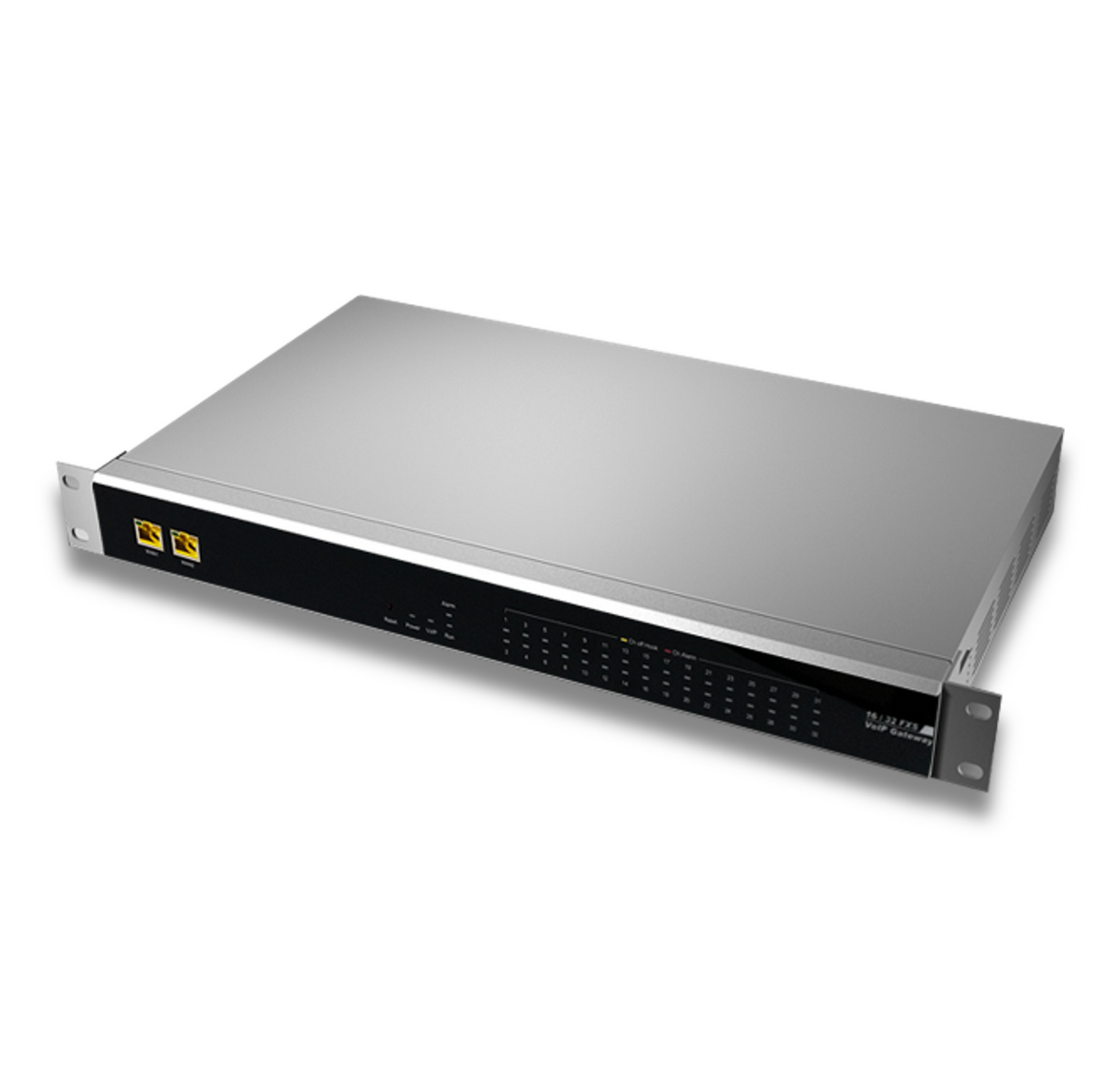

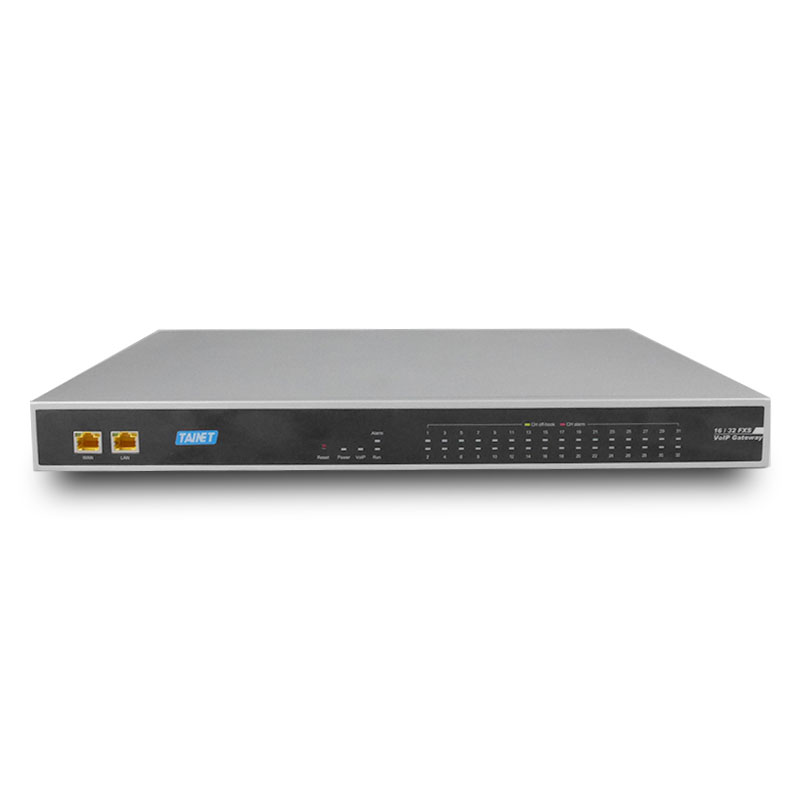

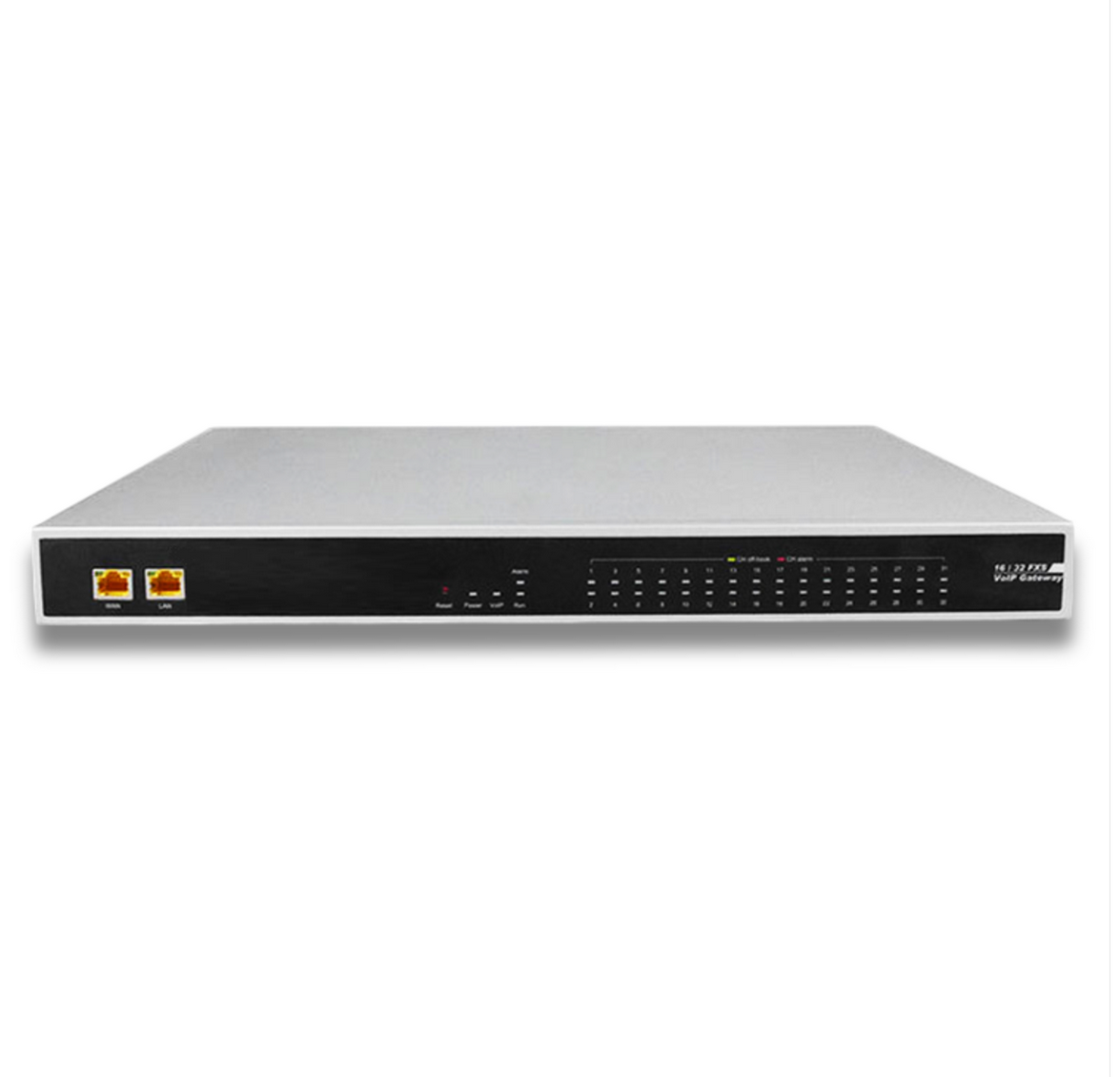

16 and 32 FXS FXO Carrier-class VoIP Gateway SIP Protocol

Tainet Saturn VoIP Gateway provides a connection platform between traditional POTS lines and the Internet. Over various broadband technologies including xDSL, HFC, wireless and fiber, Saturn carries toll quality voice, fax and data traffic simultaneously in a cost-effective way. In addition, the VoIP Gateway supports intelligent features like long loop, line testing, polarity reversal, caller ID, call transfer, call waiting and 3- way calling. The ideal applications include MTU/MDU, virtual PBX, IP Centrex, PBX extension and hosted telephony services

Request A Quote  Datasheet

Category:
  • Feature

    • RFC 3261 SIP protocol VoIP Gateway
    • 16 / 32 FXS or 16 / 32 FXO Lines
    • 1WAN + 1LAN, RJ-45 10/100 baseT Ethernet
    • Interactive Voice Response (IVR)
    • T.30 and T.38 compliant
    • Line reversal and metering tone (12K/16KHz)
    • Ethernet switch function with QoS and VLAN
    • IGMP Proxy / Snooping
    • Advanced calling features, 3-Way Conference with/without media server, call parking and more
    • WEB based configuration (HTTP/HTTPs)
    • TR-069, TR-104, DHCP Auto Provision
    • SNMP V2/V1
    • IPv4, IPv6 support*
  • Specifications

    Model
    • Saturn 3416S: 16 FXS, 2 Ethernet ports (1 WAN + 1 LAN)
    • Saturn 3416O: 16 FXO, 2 Ethernet ports (1 WAN + 1 LAN)
    • Saturn 3432S: 32 FXS, 2 Ethernet ports (1 WAN + 1 LAN)
    • Saturn 3432O: 32 FXO, 2 Ethernet ports (1 WAN + 1 LAN)
    Voice Feature
    • G.722,G.711 a /μ-law, G.723.1, G.726, G.729A/B or GSM 6.10 Full Rate, ILBC13.3kbps
    • Silence Suppression & Detection
    • Comfort Noise Generation (CNG)
    • Voice Activity Detection (VAD)
    • Echo Cancellation (G.165/G.168)
    • Adaptive (Dynamic) Jitter Buffer
    • Call Progress Tone Generation (FXS)
    • Programmable Gain Control
    • Local Mixer
    • ITU-T V.152 Voice-band Data over IP Networks
    SIP Method Support
    • ACK, BYE, CANCEL, INFO, INVITE, MESSAGE, NOTIFY, OPTIONS, PING, PRACK, PUBLISH, REFER, REGISTER, SUBSCRIBE, UPDATE
    SIP Call Features
    • Peer to Peer Call
    • Call Hold / Retrieve
    • Call Waiting
    • Call Pick Up
    • Call Park / Retrieve (with SIP Server)
    • Call Forward – unconditional, busy, no answer
    • Call Transfer – attended, unattended
    • Speed Dialing
    • Repeat Dialing
    • Three-way Calling
    • MWI (RFC-3842)
    • Hot Line and Warm Line
    SIP Call Management
    • Support Outbound Proxy
    • Support up to three SIP servers
    • SIP Registration Automatic Failover
    • Group Hunting
    • Privacy Mechanism /Private Extension to SIP
    • Session Timers(Update / Re-invite)
    • DNS SRV Support
    • Call Types: Voice/ Modem/ FAX
    • Call Routing by Prefix Number
    • User Programmable Dial Plan
    • By routing Calling Number Manipulation
    • RADIUS CDR Client
    • Manual Peer Table(for P2P calls)
    • E.164 Numbering, ENUM support
    SIP Account Management
    • By port registration
    • By device registration (share account)
    • Mixed mode (Hunt number for inbound, by port number for outbound)
    • Invite with Challenge
    • Register by SIP Server IP Address or Domain Name
    • Support RFC3986 SIP URI format

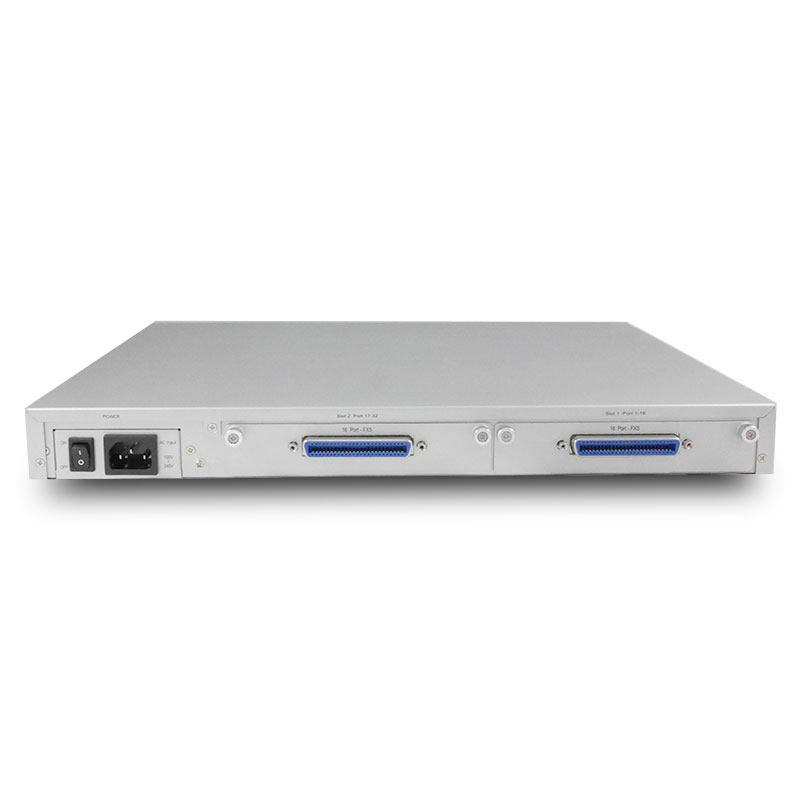

    Physical Interface

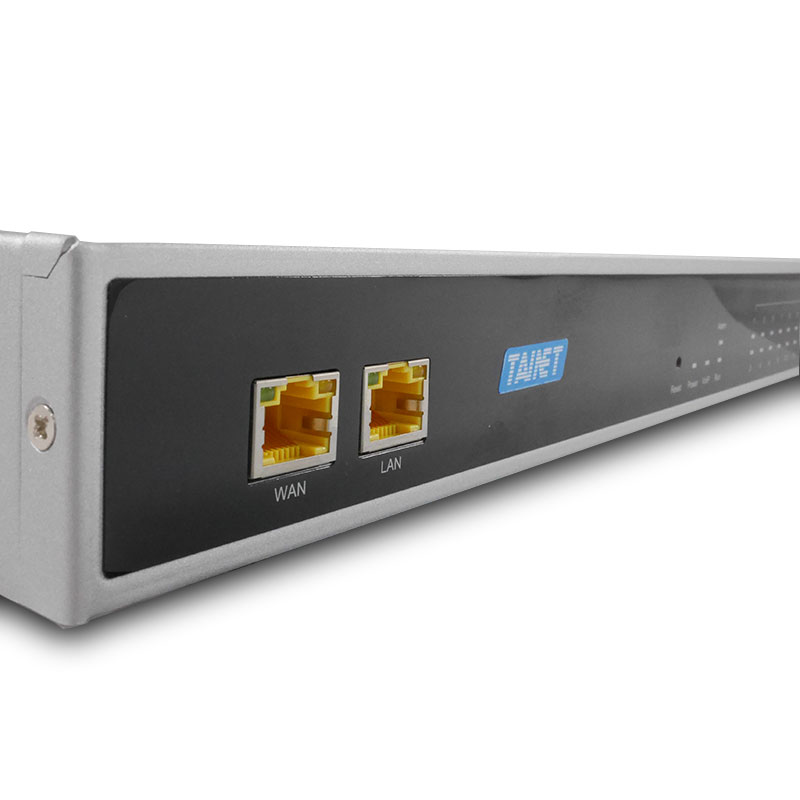

    • WAN: 1 x 10/100 Ethernet, auto cross-over, auto speed negotiation, RJ-45
    • LAN: 1 x 10/100 Ethernet, auto cross-over, auto speed negotiation, RJ-45

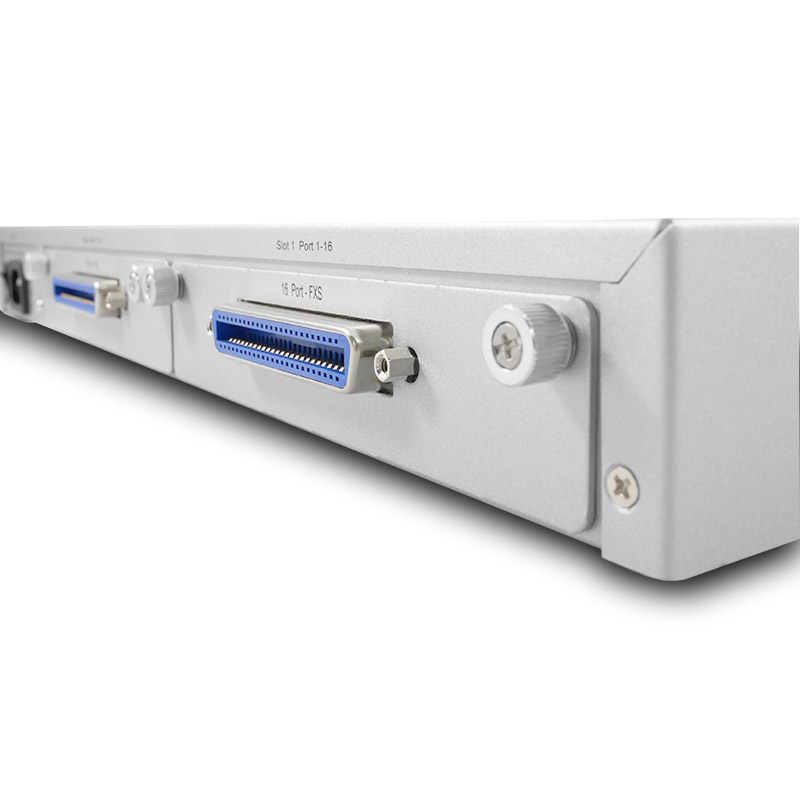

    • 1 x RJ21 female connector for FXS line wiring

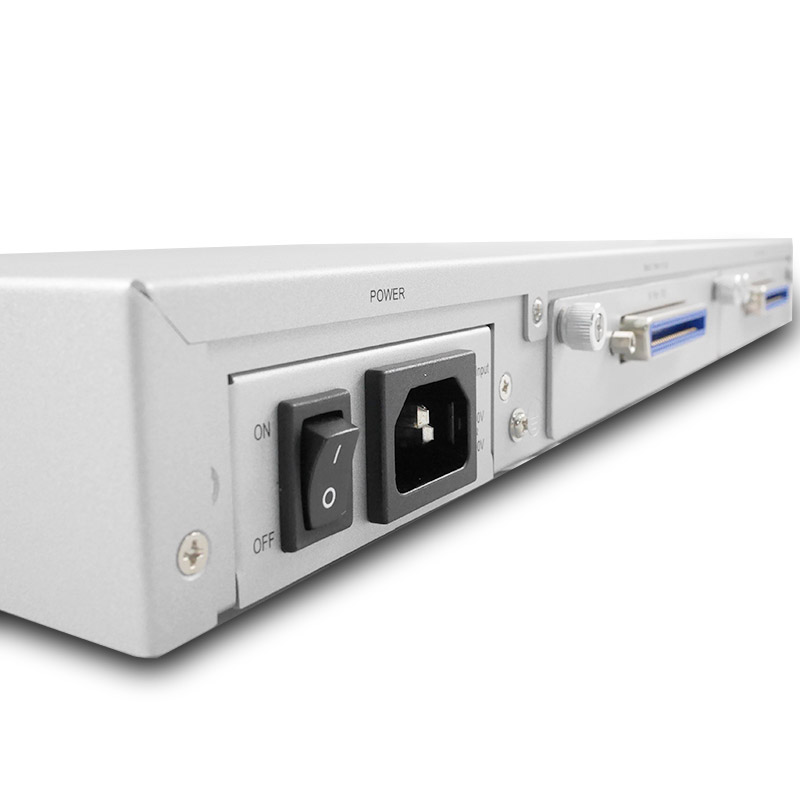

    • Power jack, Power switch, Reset button
    Telephony Specification
    • In-Band DTMF, Out-of-Band DTMF Relay (RFC2833 or SIP INFO)
    • DTMF / PULSE Dial Support
    • Caller ID Generation(FXS) and Detection(FXO):

    .DTMF
    .FSK-Bellcore Type 1 & 2
    .FSK-ETSI Type 1 & 2
    .FSK-NTT
    .FSK: Calling Name, Number, Date and Time , VMWI

    • FXS metering pulse:

    .Polarity Reversal
    .12kHZ calling tone
    .16kHZ calling tone

    • Polarity Reverse
    • T.30 FAX bypass, T.38 Real-Time FAX Relay
    • FXS Line test and diagnostics with visual alarm indication
    • Inward self test:

    .Loopback – codec
    .Loopback – analogue
    .Ringer
    .Outward Test (GR909 Standard):
    .REN
    .Phone Line disconnected
    .H.F. AC Voltage (Hazardous and foreign AC Voltage)

    • Fax and Modem over IP (up to 14,400bps)
    • Failsafe mechanism: FXS auto or manual relay to FXO through hardware relay or internal PCM Bus while Network, Service or power failure occurs
    • ROH Tone( Receiver Off-Hook Tone@480 Hz)
    • Loop Current Suppression

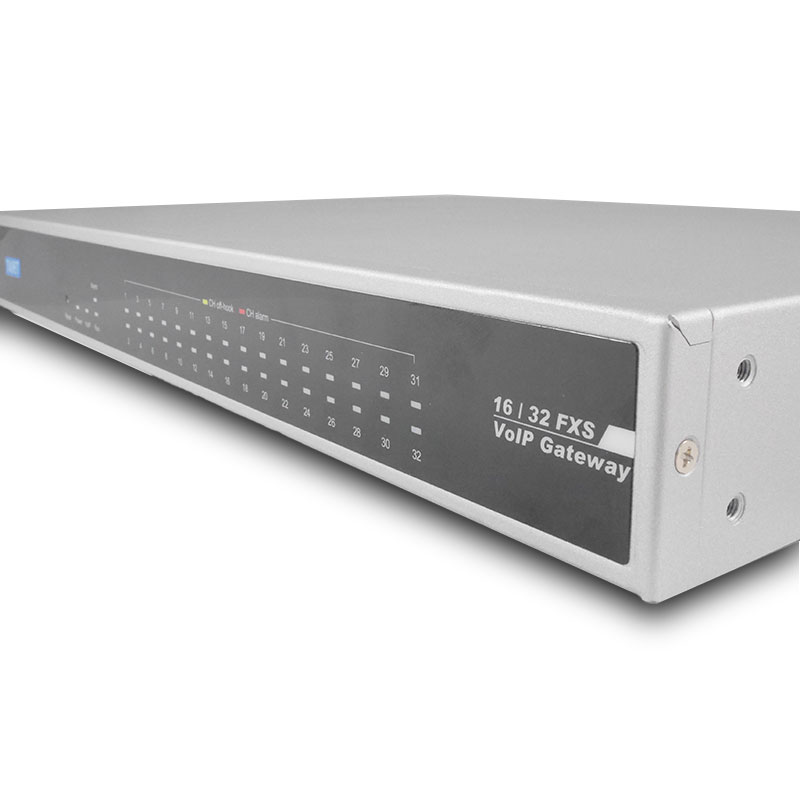

    LED Indicators
    • Power, VoIP, Alarm, Run, WAN, LAN, Phone off-hook 1~32 / Phone Ch Alarm 1~32, Line 1~32
    Accessories
    • RJ21 to RJ11-male cable
    • RJ45 cable
    • AC Power cord
    • User Manual in CD
    • Rack mount kit
    General Information
    • Dimensions : 44.5 (W) x 33 (D) x 4.5 cm (H)
    • Weight : 4.4 Kg
    • Power : AC 100~240 V 50/60Hz input
    • Operating temperature :0°C~ 45 °C
    • Storage temperature : – 25°C~ 75 °C
    • Operating Humidity : Up to 90% RH, non-condensing
    IP Network Specification
    • Support IPv4, IPv6 future upgradeable
    • WAN: Static IP, PPPoE, DHCP, PPtP
    • Network Protocol Support:
    • IP, TCP, UDP, TFTP, FTP, RTP, RTCP, XR, ARP, RARP, ICMP, NTP, SNTP, HTTP, HTTPS, DNS, DNS SRV, Telnet, DHCP Server, DHCP Client, SNTU Client, UPnP, IGMP, IGMP snooping, IGMP proxy
    QoS Support
    • WAN: DiffServ, IP Precedence

    .Priority Queue
    .Rate Control
    .802.1Q (VLAN Tagging), 802.1p (Priority Tag)

    • LAN: Rate Limit
    DDNS Support
    • Dyndns.org (Dynamic and Custom)
    • TZO
    • Peanut Hull
    Network Security Specifications
    • PPtP Client
    • DIGEST Authentication
    • MD5 Encryption
    • DoS Protection
    Management
    • Web Based Configuration
    • Auto- provisioning (HTTP/ HTTPS/ TFTP)
    • Telnet
    • IVR
    • FTP/ TFTP/ HTTP Software Upgrade
    • Configuration Backup and Restore
    • Reset to Default Button
    • TR-069, TR104 (optical)
    SIP, Voice and FAX Related Standard
    • RFC3263 Session Initiation Protocol (SIP): Locating SIP Servers
    • RFC3264 An Offer/Answer Model with Session Description Protocol (SDP)
    • RFC3265 Session Initiation Protocol(SIP)-Specific Event Notification
    • RFC3311 The Session Initiation Protocol (SIP) UPDATE Method
    • RFC3323 A Privacy Mechanism for the Session Initiation Protocol (SIP)
    • RFC3325 Private Extensions to the Session Initiation Protocol (SIP) for Asserted Identity within Trusted Networks
    • RFC3362 Real-time Facsimile (T.38) – image/t38 MIME Sub-type Registration
    • RFC3515 The Session Initiation Protocol (SIP) Refer Method
    • RFC3550 RTP: A Transport Protocol for Real-Time Applications. July 2003
    • RFC3842 A Message Summary and Message Waiting Indication Event Package for the Session Initiation Protocol (SIP)
    • RFC3665 Session Initiation Protocol (SIP) Basic Call Flow Examples
    • RFC3824 Using E.164 numbers with the Session Initiation Protocol (SIP)
    • RFC3841 Caller Preferences for the Session Initiation Protocol (SIP)
    • RFC3261 SIP: Session Initiation Protocol
    • RFC3262 Reliability of Provisional Responses in Session Initiation Protocol (SIP)
    • RFC1889 RTP: A Transport Protocol for Real-Time Applications.
    • RFC2543 SIP: Session Initiation Protocol
    • RFC2833 RTP Payload for DTMF Digits, Telephony Tones and Telephony Signals
    • RFC2880 Internet Fax T.30 Feature Mapping
    • RFC2976 The SIP INFO Method
    • RFC3891 The Session Initiation Protocol (SIP) “Replaces” Header
    • RFC3892 The Session Initiation Protocol (SIP) Referred-By Mechanism
    • RFC3960 Early Media and Ringing Tone Generation in the Session Initiation Protocol (SIP)
    • RFC3986 Uniform Resource Identifier (URI): Generic Syntax
    • RFC4028 Session Timers in the Session Initiation Protocol (SIP)
    • Draft-ietf-sipping-service-examples-08 for call features

    Network Related Standard

    • RFC318 Telnet Protocols
    • RFC791 Internet Protocol
    • RFC792 Internet Control Message Protocol
    • RFC793 Transmission Control Protocol
    • RFC768 User Datagram Protocol
    • RFC826 Ethernet Address Resolution Protocol
    • RFC959 File Transfer Protocol
    • RFC1034 Domain Names – concepts and facilities
    • RFC1035 Domain Names – implementation and specification
    • RFC1058 Routing Information Protocol
    • RFC1157 Simple Network Management Protocol (SNMP)
    • RFC1305 Network Time Protocol (NTP)
    • RFC1321 The MD5 Message- Digest Algorithm
    • RFC1349 Type of Service in the Internet Protocol Suite
    • RFC1350 The TFTP Protocol (Revision 2)
    • RFC1661 The Point-to-Point Protocol (PPP)
    • RFC1738 Uniform Resource Locators (URL)
    • RFC2854 The ‘text/html’ Media Type
    • RFC2131 Dynamic Host Configuration Protocol
    • RFC2136 Dynamic Updates in the Domain Name System (DNS UPDATE)
    • RFC2327 SDP: Session Description Protocol
    • RFC2474 Definition of the Differentiated Services Field (DS Field)
    • RFC2516 A Method for Transmitting PPP Over Ethernet
    • RFC2616 Hypertext Transfer Protocol – HTTP/1.1
    • RFC2617 HTTP Authentication: Basic and Digest Access Authentication
    • RFC2637 Point-to-Point Tunneling Protocol
    • RFC2766 Network Address Translation – Protocol Translation (NAT-PT)
    • RFC2782 A DNS RR for Specifying the location of Services (DNS UPDATE)
    • RFC2818 HTTP Over TLS (HTTPS)
    • RFC2916 E.164 Number and DNS
    • RFC3022 Traditional IP Network Address Translator
    • RFC3489 STUN – Simple Traversal of User Datagram Protocol (UDP)Through Network Address Translators (NATs)

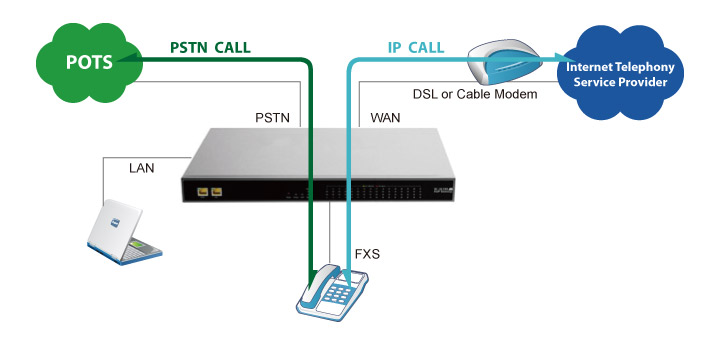

  • Application
