2 FXS VoIP Router

Tainet Saturn VoIP Gateway provides a connection platform between traditional POTS lines and the Internet. Over various broadband technologies including xDSL, HFC, wireless and fiber, Saturn carries toll quality voice, fax and data traffic simultaneously in a cost-effective way. In addition, the VoIP Gateway supports intelligent features like long loop, line testing, polarity reversal, caller ID, call transfer, call waiting and 3- way calling. The ideal applications include MTU/MDU, virtual PBX, IP Centrex, PBX extension and hosted telephony services

Request A Quote  Datasheet

Category:
  • Features

    • G.722 64kbps, G.711 a/μ-law, G.729A, G.726, G.723.1, GSM 6.10 Full Rate, iLBC 13.3 kbps
    • DTMF Detection and Generation
    • Silence Suppression & Detection
    • Comfort Noise Generation (CNG)
    • Voice Activity Detection (VAD)
    • Echo Cancellation (G.168)
    • Dynamic Jitter Buffer
    • Call progress tone detection (FXO) and generation (FXS)
    • Programmable Gain Control
    • Inbuilt Local Mixer
    • ITU-T V.152 Voice-band Data over IP Networks
  • Specifications

    Voice Features
    • G.722 64kbps, G.711 a/μ-law, G.729A, G.726, G.723.1 GSM 6.10 Full Rate, iLBC 13.3 kbps
    • DTMF Detection and Generation
    • Silence Suppression & Detection
    • Comfort Noise Generation (CNG)
    • Voice Activity Detection (VAD)
    • Echo Cancellation (G.168)
    • Dynamic Jitter Buffer
    • Call progress tone detection (FXO) and generation (FXS)
    • Programmable Gain Control
    • Inbuilt Local Mixer
    • ITU-T V.152 Voice-band Data over IP Networks
    Telephony Specifications
    • Configurable Payphone charging pulse interval by SIP OPTION
    • In-Band DTMF, Out-of-Band DTMF Relay (RFC2833 or SIP INFO)
    • DTMF / PULSE Dial
    • Caller ID Generation / Detection:

     DTMF
     FSK-Bellcore Type 1 & 2
     FSK-ETSI Type 1 & 2
     FSK-NTT
     FSK: Calling Name, Number, Date and Time, VMWI

    • FXS metering pulse options:

     Polarity Reversal
     12kHz calling tone
     16kHz calling tone

    • Configurable Payphone charging signal interval by SIP OPTION
    • Polarity Reversal Detection (FXO) and Generation (FXS)
    • T.30 FAX passthrough, T.38 Real Time FAX Relay
    • Auto PSTN bypass at network or power failure(SP350SO)
    • ROH Tone (Receiver Off-Hook Tone @ 480 Hz)
    • Loop Current Suppression
    • Call Feature enable/disable via phoneset

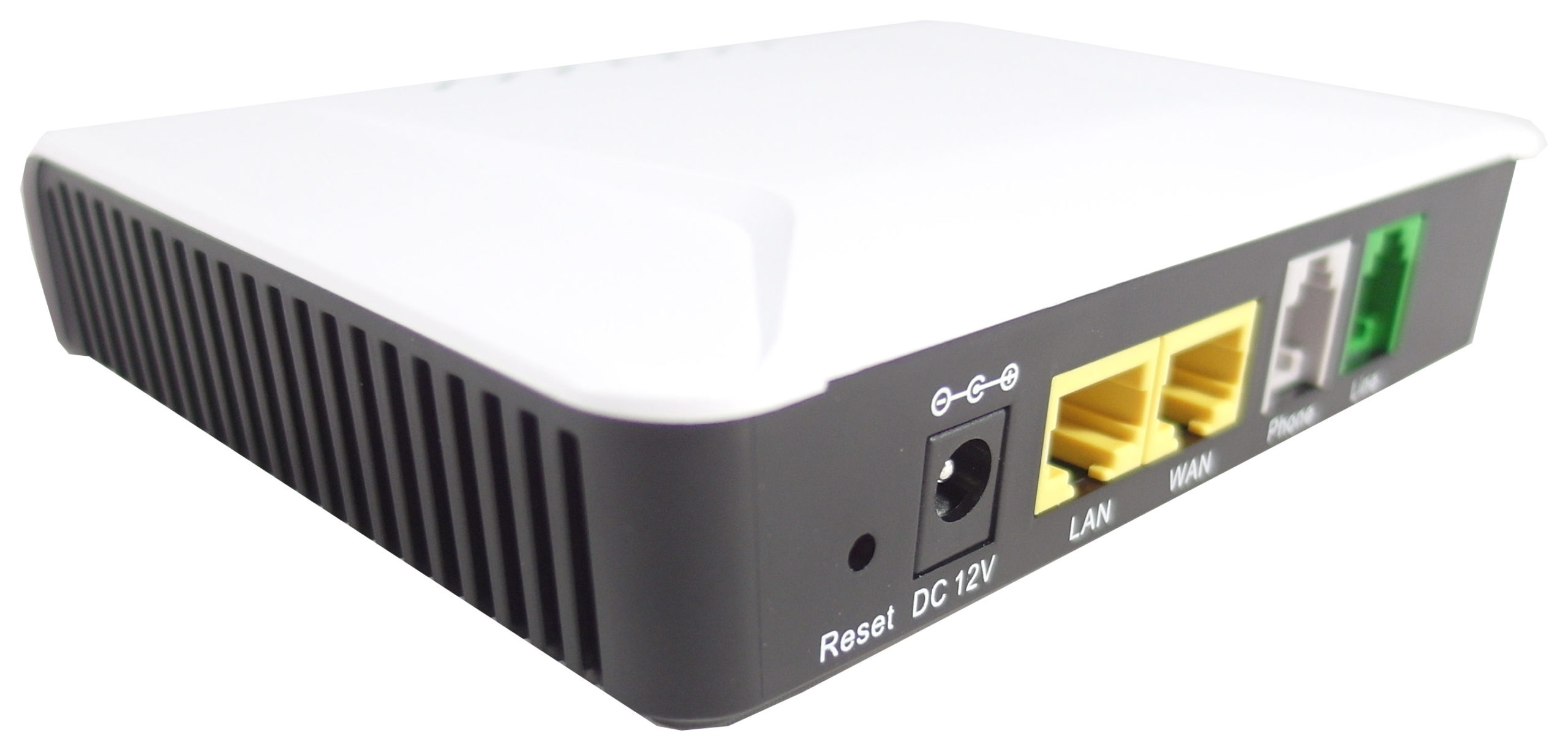

    Physical
    • WAN : 1 x 100 baseTx,

     auto cross-over,
     auto speed negotiation,
     RJ-45 connector

    • LAN : 1 x 100 baseTx,

     auto cross-over,
     auto speed negotiation,
     RJ-45 connector

    • Telephone : RJ11 FXS or FXO port
    • Factory default and Reset button Power jack
    LED Indicators
    • SP350DS : Power, Alarm, Register, Phone 1, Phone 2, WAN, LAN
    • SP350SO : Power, Alarm, Register, Phone, Line, WAN, LAN
    IP Network Specifications
    • WAN: Static IP, PPPoE, DHCP, PPTP and L2TP
    • NAT Functions

     Support up to 250 Clients
     Port Forwarding (Virtual Servers)
     DMZ

    • Support IPv4, IPv6(optional)

     QoS Support:
     WAN: DiffServ, IP Precedence, Priority Queue
     Rate Control, 802.1Q (VLAN Tagging),
     802.1p (Priority Tag)
     LAN: Rate Limit

    • DDNS Support
    • Network Protocol Support:

     IP, TCP, UDP, TFTP, FTP, RTP, RTCP, ARP, ICMP, NTP,DHCP, STUN Client,  HTTP, HTTPS, DNS, DNS SRV, Telnet,UPnP, IGMP, IGMP snooping, IGMP proxy, RTSP ALG, SIP ALG

    SIP, Voice and FAX Related Standard
    • RFC1889、RFC2543、RFC2833、RFC2880、RFC2976、RFC3261、RFC3262、RFC3263、RFC3264、RFC5359、RFC3265、RFC3311、RFC3323、RFC3325、RFC3362、RFC3515、RFC3550、RFC3665、RFC3824、RFC3841、RFC3842、RFC3891、RFC3892、RFC3960、RFC3986、RFC4028
    Network Related Standard
    • RFC318、RFC791、RFC792、RFC793、RFC768、RFC826、RFC959、RFC1034、RFC1035、RFC1058、RFC1157、RFC1305、RFC1321、RFC1349、RFC1350、RFC1661、RFC1738、RFC2854、RFC2131、RFC2136、RFC2327、RFC2474、RFC2516、RFC2616、RFC2617、RFC2637、RFC2766、RFC2782、RFC2818、RFC2916、RFC3022、RFC3489

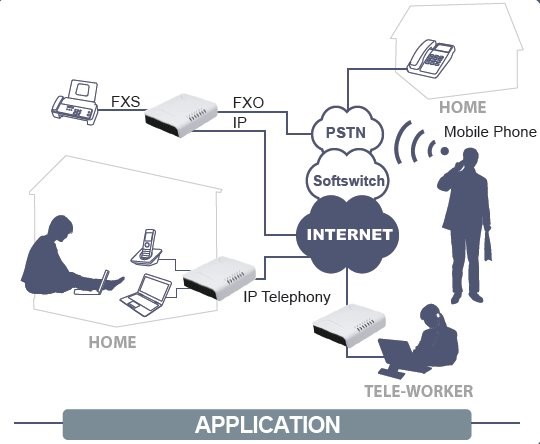

  • Application

    Application
