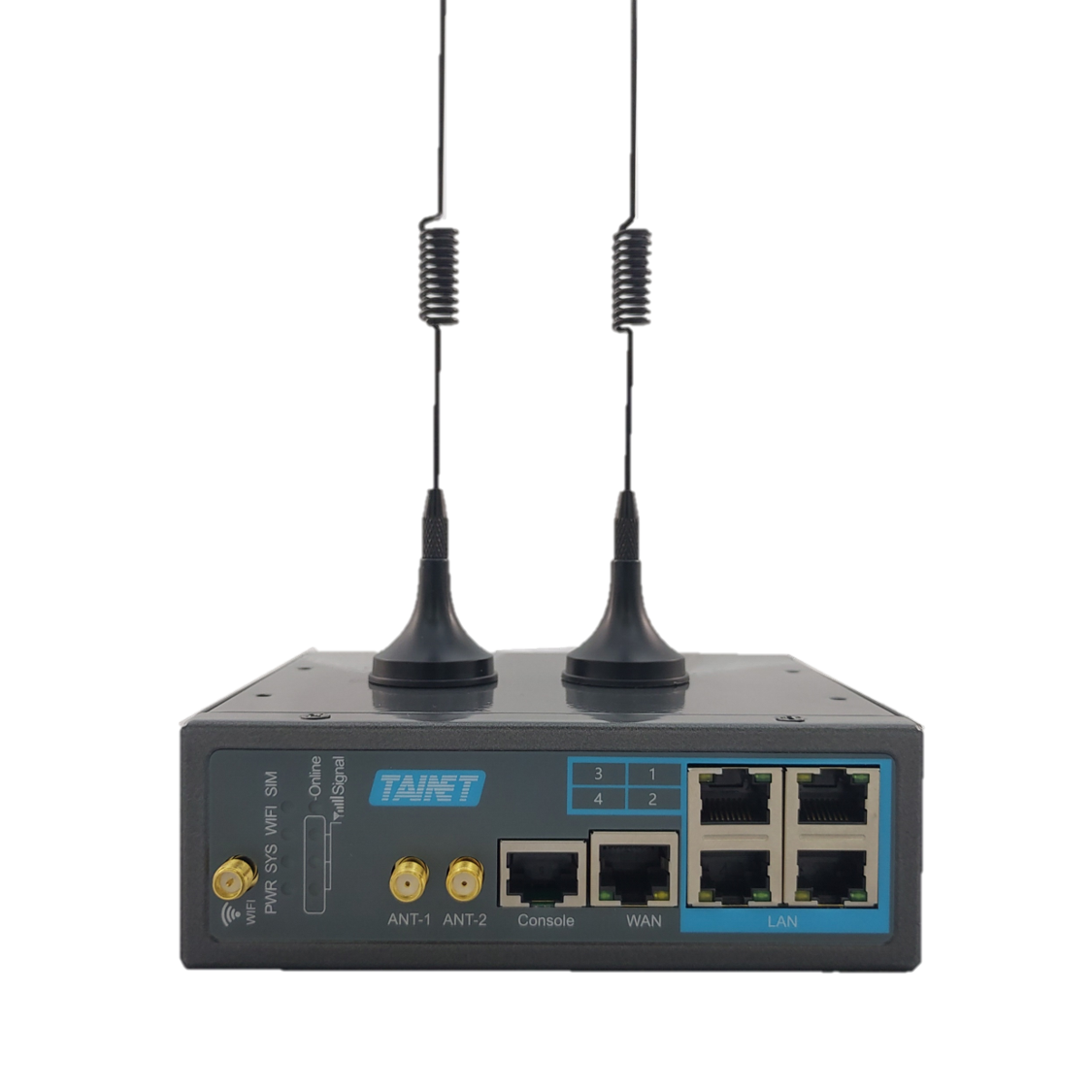

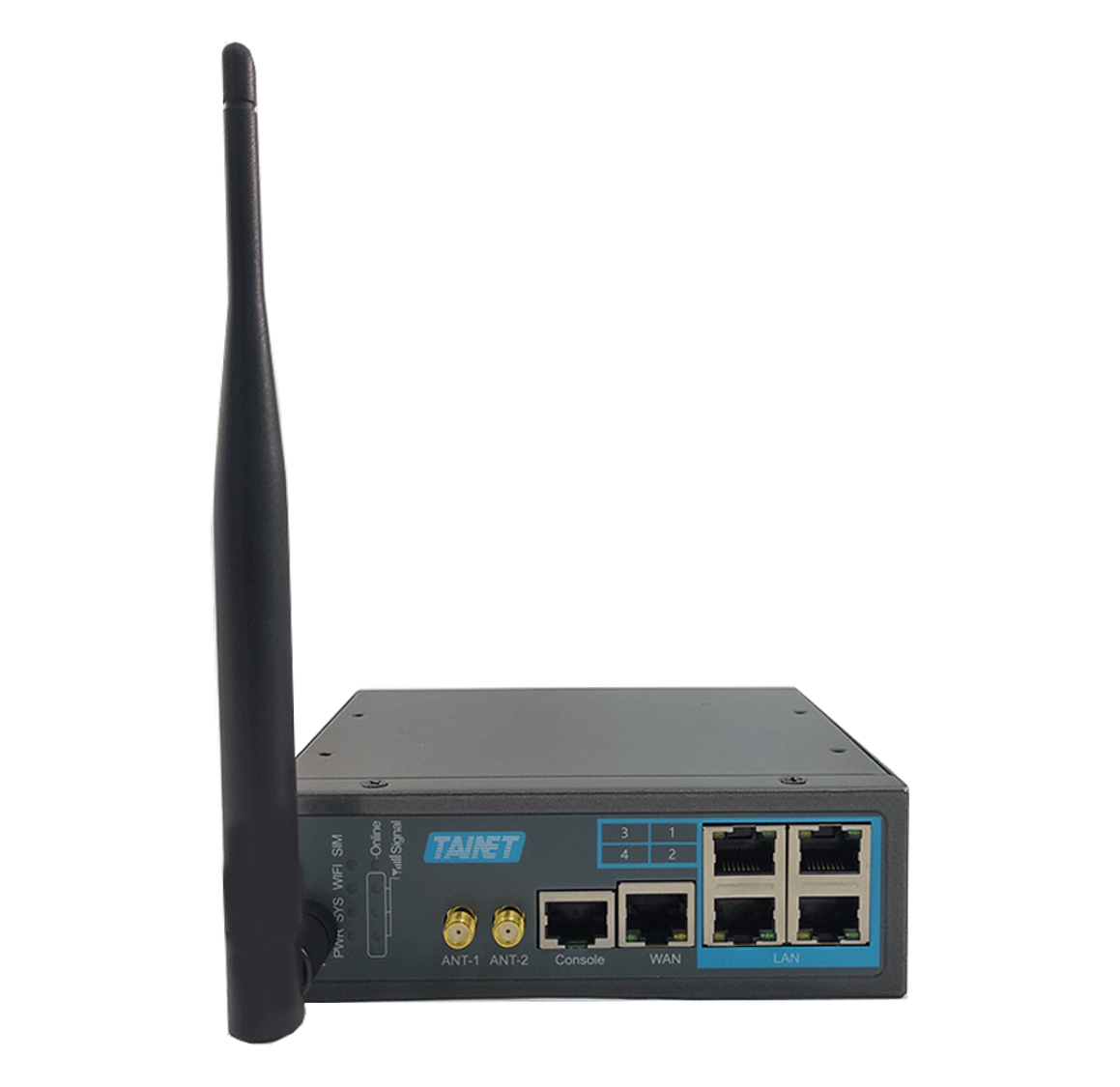

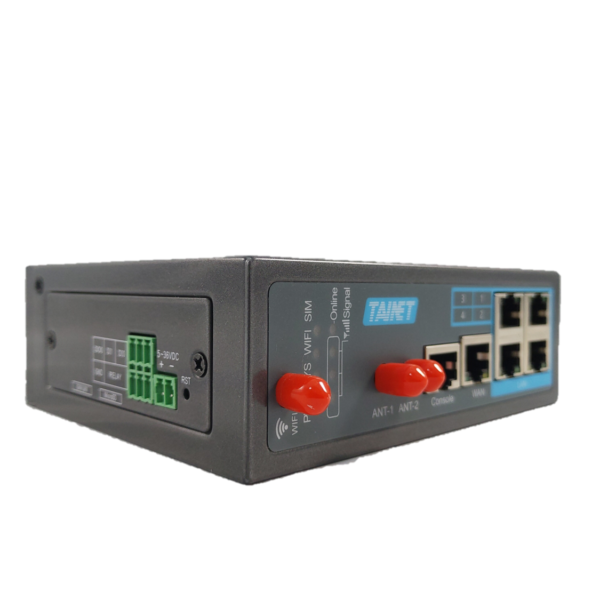

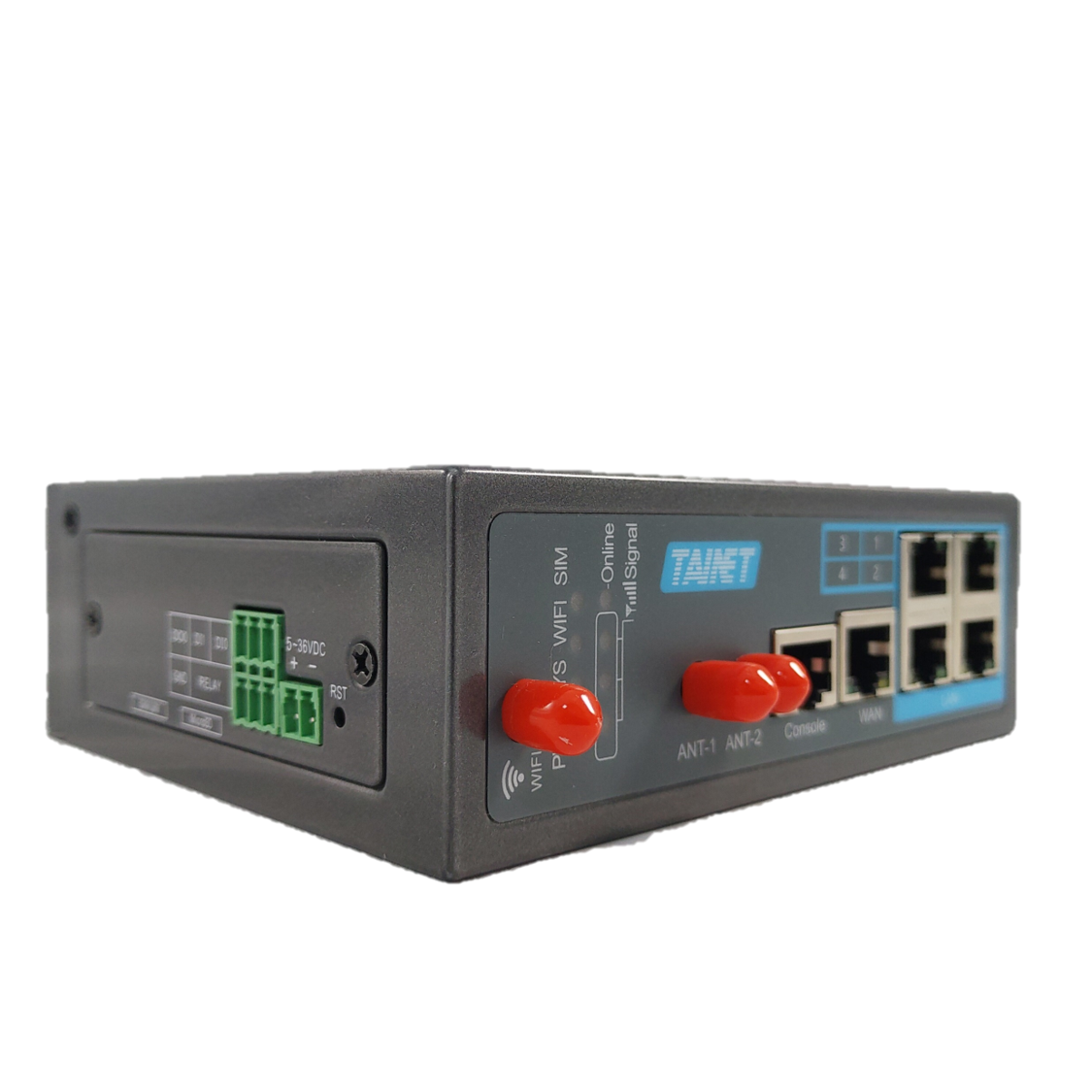

Industrial LTE DIDO Wi-Fi Router

RFFA20100 is an intelligent cellular router designed for industrial application which requires faultless connectivity. It provides a secured, reliable, real-time, remote connectivity for SCADA, distribution management systems, metering etc. Functions like software-defined, multi-carrier networking, dual SIM models, 802.11n and global 2.5G/3G/HSPA+/LTE options make the device easy to be connected. To have varies applying environment; RFFA20100 supports DIN-rail mounting, wide operating temperature range, and IP30 metal housing. With those industrial features, RFFA20100 will be a convenient yet reliable solution for almost any industrial wireless application.

Request A Quote  Datasheet

Category:

  • Features

    • Advanced Failover: Maximizes uptime by seamlessly switching between the multiple Internet interfaces (cellular, WAN, WIFI, dual-SIM).
    • Multiple Tunneling Schemes: Secure your data using a variety of VPN tunneling schemes, including IPSec, L2TP, PPTP, Open VPN and GRE.
    • Flexible WIFI: 802.11b/g/n, configurable WIFI as WAN or access point, WIFI Security (WEP/WPA/WPA2MixedMode) and multiple SSID.
    • Ethernet, serial and I/O for connecting diverse field assets.
    • Remote Management provides mass configuration, device management, OTA update, and troubleshooting tools.

  • Specifications

    Model
    • Cellular (LTE/WCDMA), WIFI, SIM*1(Expandable to 2), I/O(2*DI, 1*DO, 1*Relay), GPS(Option)
    Cellular WAN
    • Supported Frequency Bands:

    LTE: B1, B2, B3, B4, B5, B7, B8, B20, B28
    WCDMA: 2100(B1), 1900(B2), 850(B5)
    EV-DO/CDMA: 800(BC0)
    GSM/GPRS/EDGE: 850/900/1800/1900

    • Automatic SIM based network operator switching
    Host Interfaces
    • 10/100Base-T RJ45 Ethernet port
    • RS-232 or RS-485 Serial Console Port
    • 3 SMA antenna connectors (WI-FI and Double-cellular)
    • Active GPS antenna support (option)
    • (6) pin 3.5mm terminal block

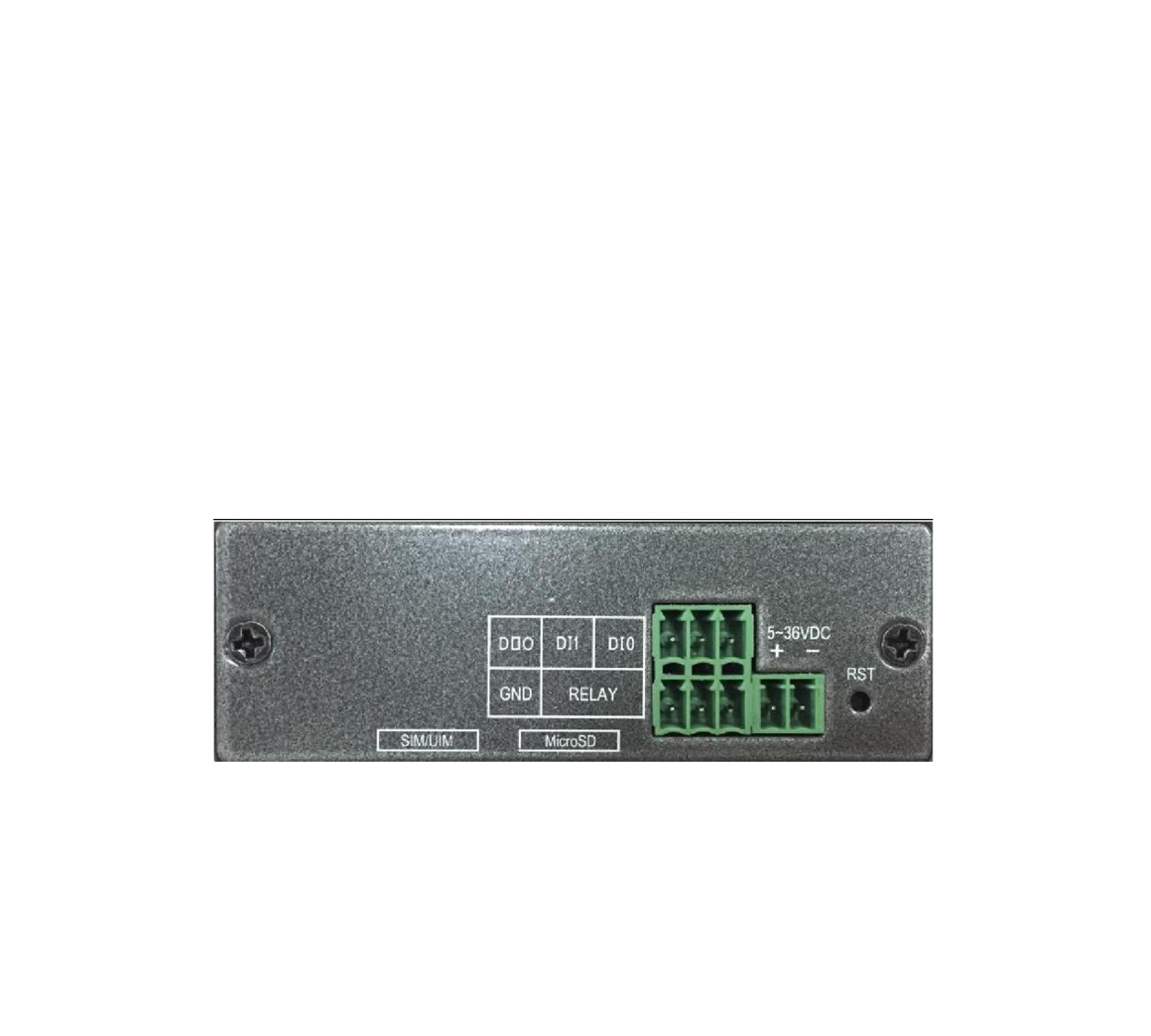

    Inout/Output
    • (6) pin 3.5mm terminal block
    • (2)DI, (1)DO, (1)Relay
    • Input ON Voltage: 5 to 30 VDC
    • Input OFF Voltage: 0 to 3 VDC
    • Output<50mA@30VDC
    • Relay: 1A 250 VAC/30VDC
    LAN
    • DNS, DNS Proxy
    • DHCP Server
    • IP Passthrough (option)
    • VLAN
    • Host Interface Watchdog
    • PPPoE
    Serial
    • TCP/UDPPAD Mode
    • Modbus (ASCII, DTU, Variable)
    • PPP
    • Reverse Telnet
    Events engine (Option)
    • Custom event triggers and reports
    • Configurable interface, no programming
    • Event Types: Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature
    • Report Types: TCP, UDP, SMS, SNMP Trap, HTTP, JSON
    • Event Actions: Drive Relay Output.
    Wi-Fi
    • IEEE802.11b/g/n, AP and client mode.
    • Adjustable output power (Max:26dBm)
    • Access point for up to 30 clients
    • Simultaneous access point/client mode
    • WEP, WPA-PSK, WPA2-PSK etc. Security
    Network and Routing
    • Network Address Translation (NAT)
    • Port Forwarding
    • Host Port Routing
    • VRRP
    • Reliable Static Route
    • Dynamic DNS
    VPN
    • IPSec, GRE, and OPEN VPN Client
    • Up to10 concurrent tunnels
    • Split Tunnel
    • Dead Peer Detection (DPD)
    • Multiple Subnets
    • VPN Failover
    Security
    • Remote Authentication
    • DMZ
    • Inbound and Outbound Port filtering
    • Inbound and Outbound Trusted IP
    • MAC Address Filtering
    GPS (Option)
    • Antenna Interface: SMA Female, 50ohms impedance
    • Tracking Sensitivity: better than-144dBm
    • Horizontal position accuracy: 2.5m
    • Time-To-First-Fix: 29s
    • Protocol: NMEA-0183V2.3
    Operation Environment
    • Operating Temperature: -35°C to +75°C/-31°F to +167°F
    • Storage Temperature: -40°C to 85°C/-40°F to 185°F
    • Humidity: 90% RH@60°C
    Management Service
    • Secure cloud-based device management application
    • Remote provisioning
    • Gateway configuration and template management
    • Configurable monitoring and alerting
    • Software and radio module firmware updates
    • Auto configuration
    Dimensions
    • Housing & Weight: Metal,520g
    • Dimension: (L x W x H): 133 x 115.7 x 45mm
    • Installation: 34.6mm Din-Rail or wall mounting or desktop
    Management Interfaces
    • Web-Based User Interface
    • Device Configuration Templates
    • Software and radio module firmware updates
    • AT Command Line Interface (Telnet/SSH/Serial)
    • SMS Commands (Option)
    • SNMP

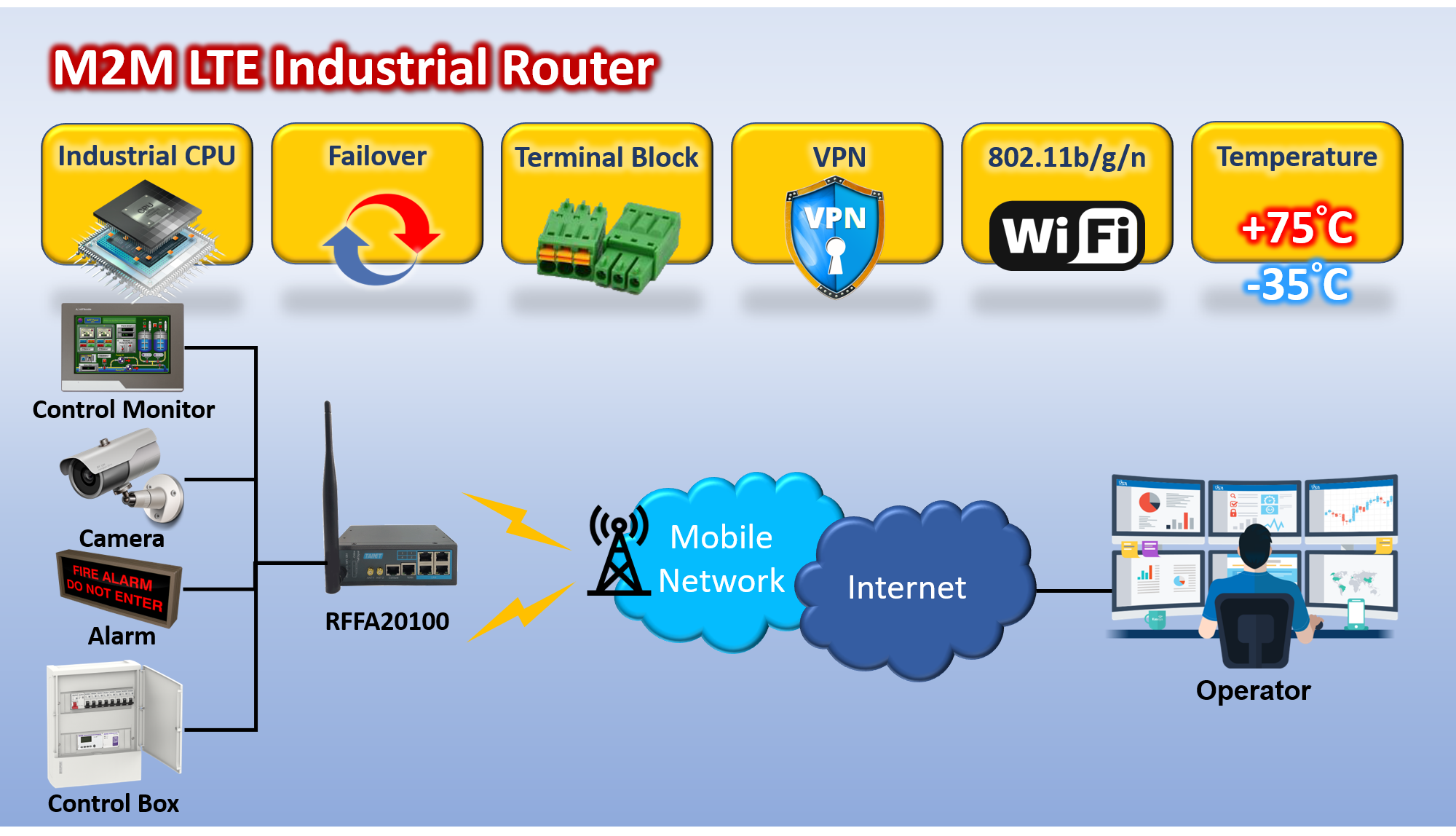

  • Application

    Application
