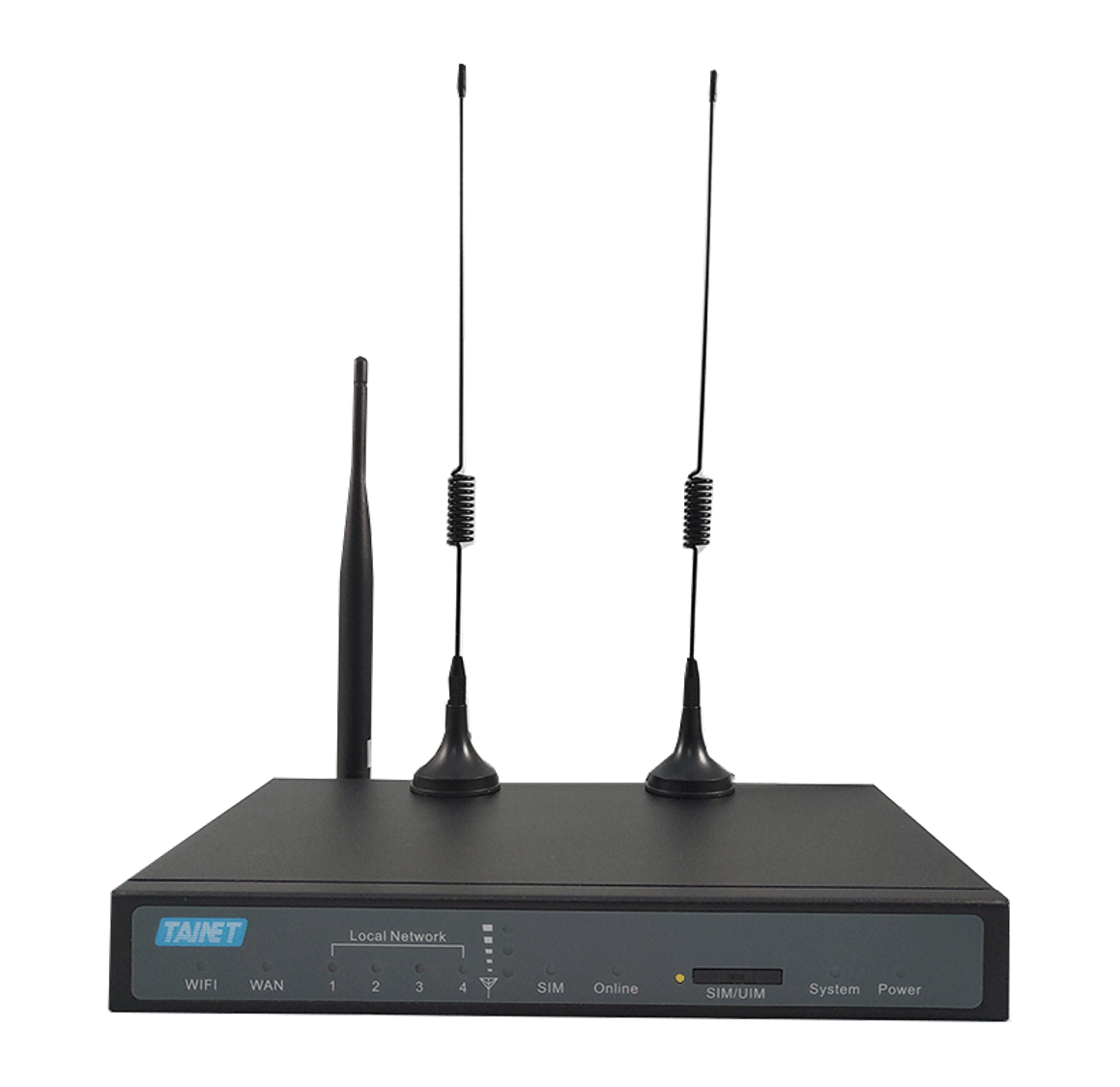

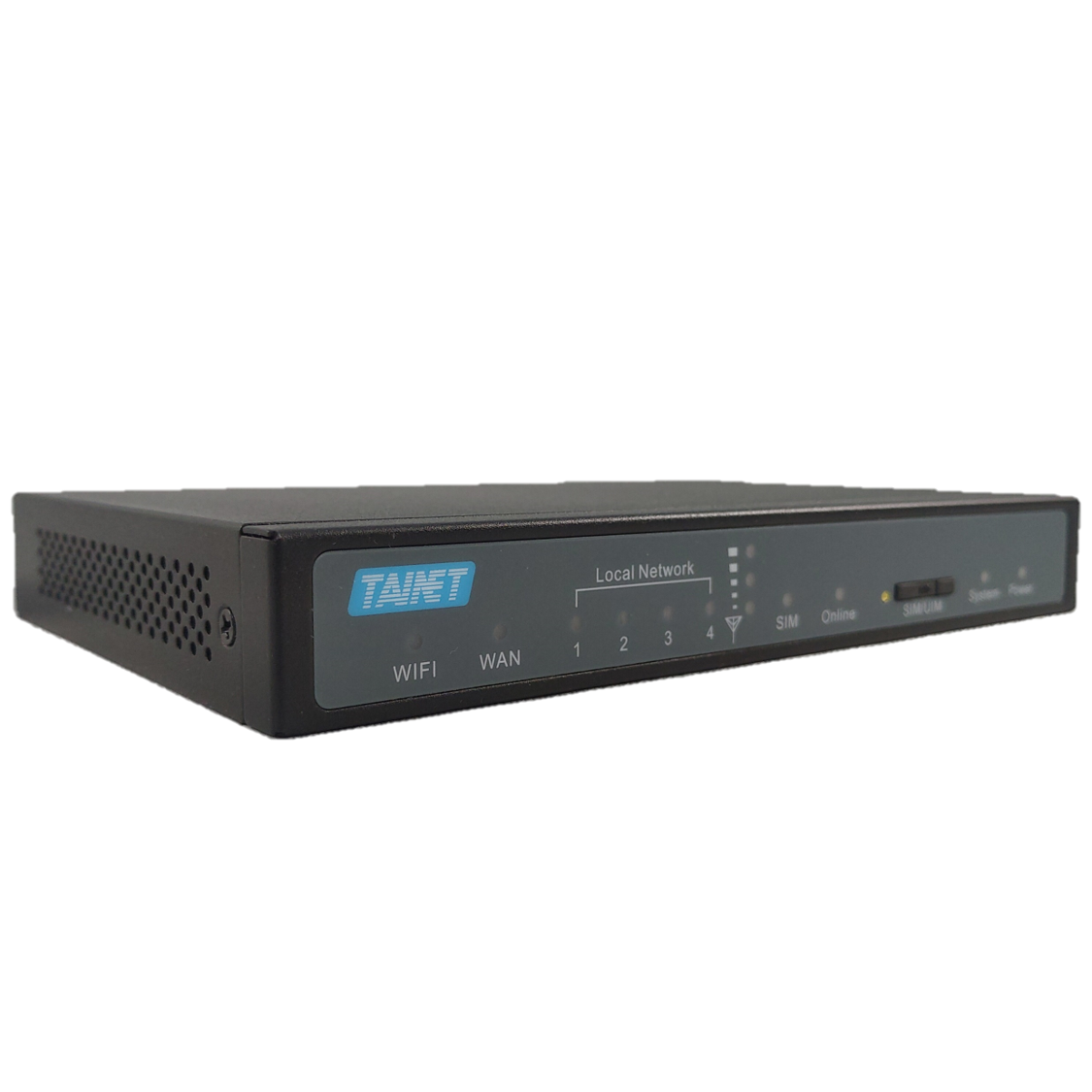

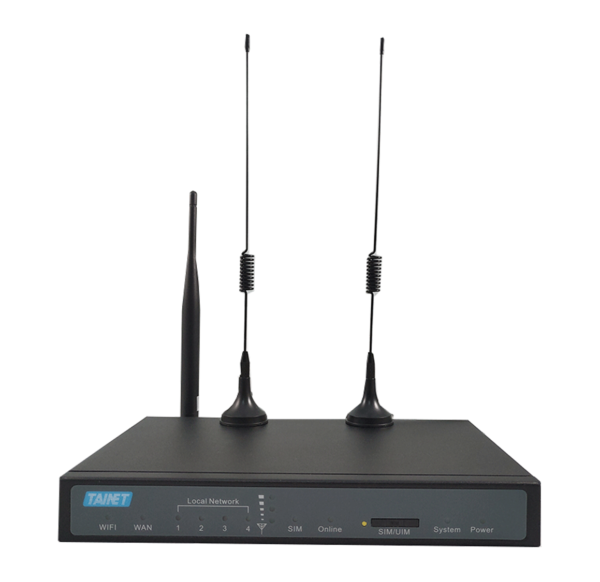

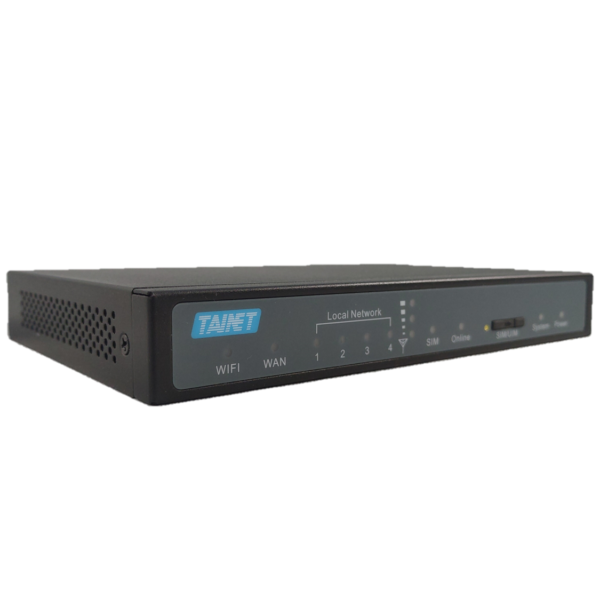

Industrial LTE Wi-Fi Router

Tainet RFFA20836 is a cellular terminal device that provides large data transferring function by utilizing public GPRS/CDMA/WCDMA/EVDO/LTE network. It equips high performance industrial grade 32-bits CPU, industrial grade wireless module and also with embedded real time operating system. It supports 1*RS232(or RS485/RS422), 4*LAN, 1*WAN and one Wi-Fi antenna connector. The interfaces can function at the same time to achieve the transmission transparency and routing features. RFFA20836 can be wildly applied at the M2M in IoT fields such as self-serviced terminal, smart grid, supply chain automation, mobile POS terminal, public safety, military, and energy resources monitoring.

Request A Quote Datasheet

Category:

  • Features

    • High-powered industrial cellular module
    • High-powered industrial 32bits CPU
    • Support low-consumption mode, including sleep
    • mode, scheduled online/offline mode, scheduled
    • power-on/power-off mode(optional)
    • Support auto recovery mechanism, including online
    • detect, auto redial when offline to make Router always online
    • Ethernet port: 1.5KV magnetic isolation
    • Support standard RS232(or RS485/RS422), Ethernet
    • and WIFI port that can connect to serial, Ethernet and WIFI devices directly
    • Support intellectual mode, enter into communication state automatically when powered

  • Specifications

    Model
    • RFFA20836: FDD-LTE WiFi, 1x WAN, 4x LAN, 2x Cellular,
    • 1x WiFi, 1x SIM/UIM
    Standard and Band
    • FDD-LTE2600/2100/1800/900/800MHz,700/1700/2100MHz(optional)
    • DC-HSPA+/HSPA+/HSDPA/HSUPA/UMTS850/900/2100M Hz,800/850/1900/2100MHz(optional)
    • EDGE/GPRS/GSM850/900/1800/1900MHz
    • GPRSCLASS10
    • GPRSCLASS12
    Bandwidth
    • FDD-LTE: Download speed 100Mbps, Upload speed 50Mbps
    • DC-HSPA+: Download speed42Mbps, Upload speed 5.76Mbps
    • HSPA+: Download speed 21Mbps, Upload speed 5.76Mbps
    • HSDPA: Download speed7.2Mbps,
    • HSUPA: Upload speed 5.76Mbps
    • UMTS: 384Kbps
    WIFI Specification
    • Standard: IEEE802.11b/g/n
    • Bandwidth:
    • IEEE802.11b/g: 54Mbps (max)
    • IEEE802.11n:150Mbps (max)
    • Security: WEP, WPA, WPA2, etc WPS (optional)
    • TX power: 20dBm (11n), 24dBm (11g), 26dBm (11b)
    • RX sensitivity: <-72dBm@54Mpbs
    Hardware System
    • CPU: Industrial32bitsCPU
    • FLASH: 16MB (Extendableto64MB)
    • DDR2: 128MB

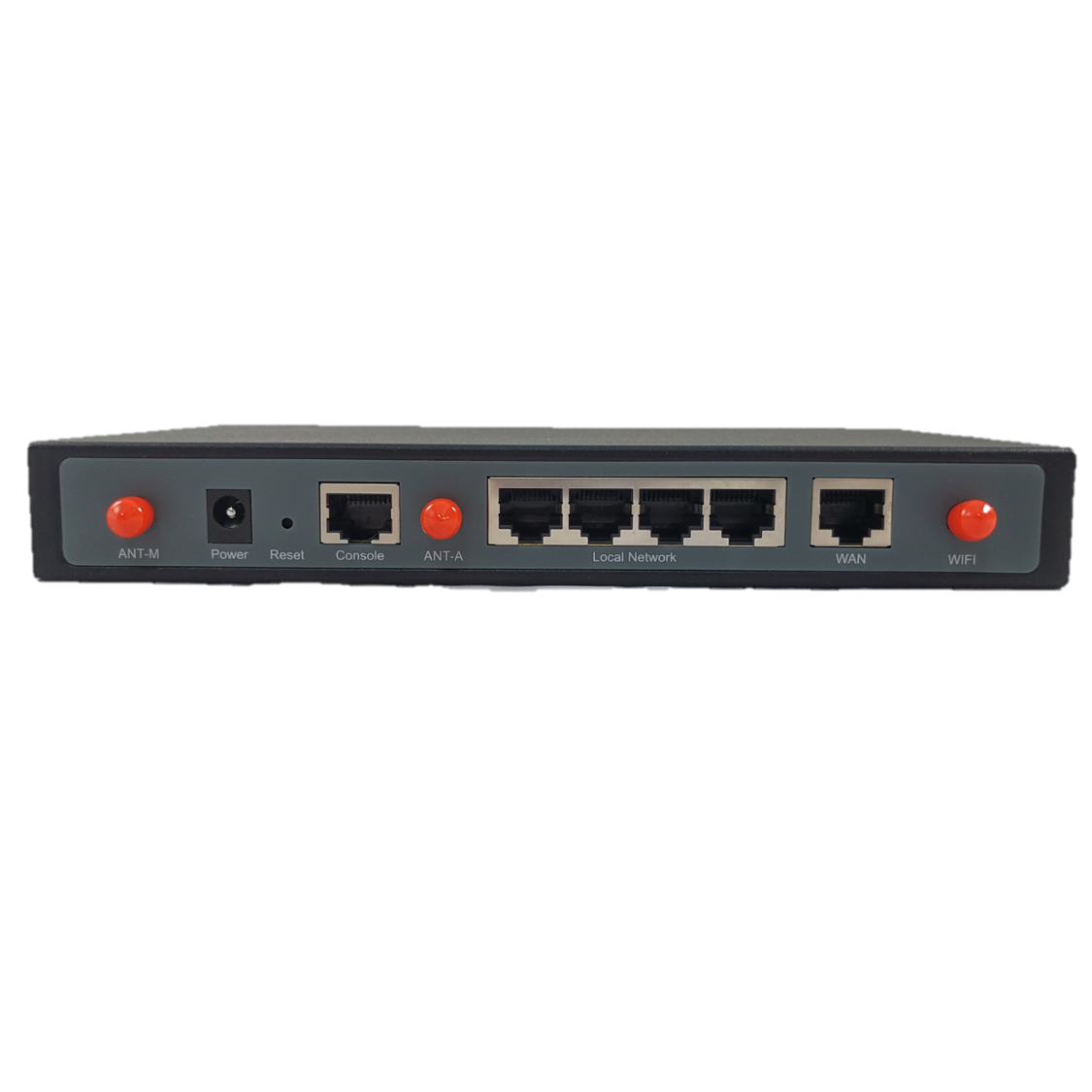

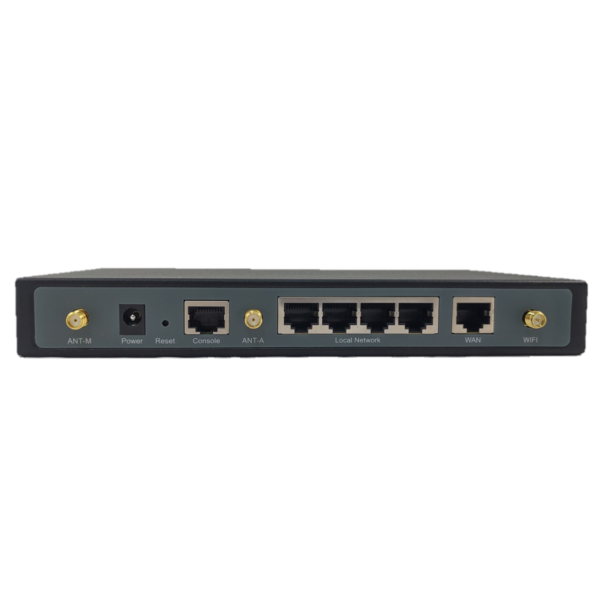

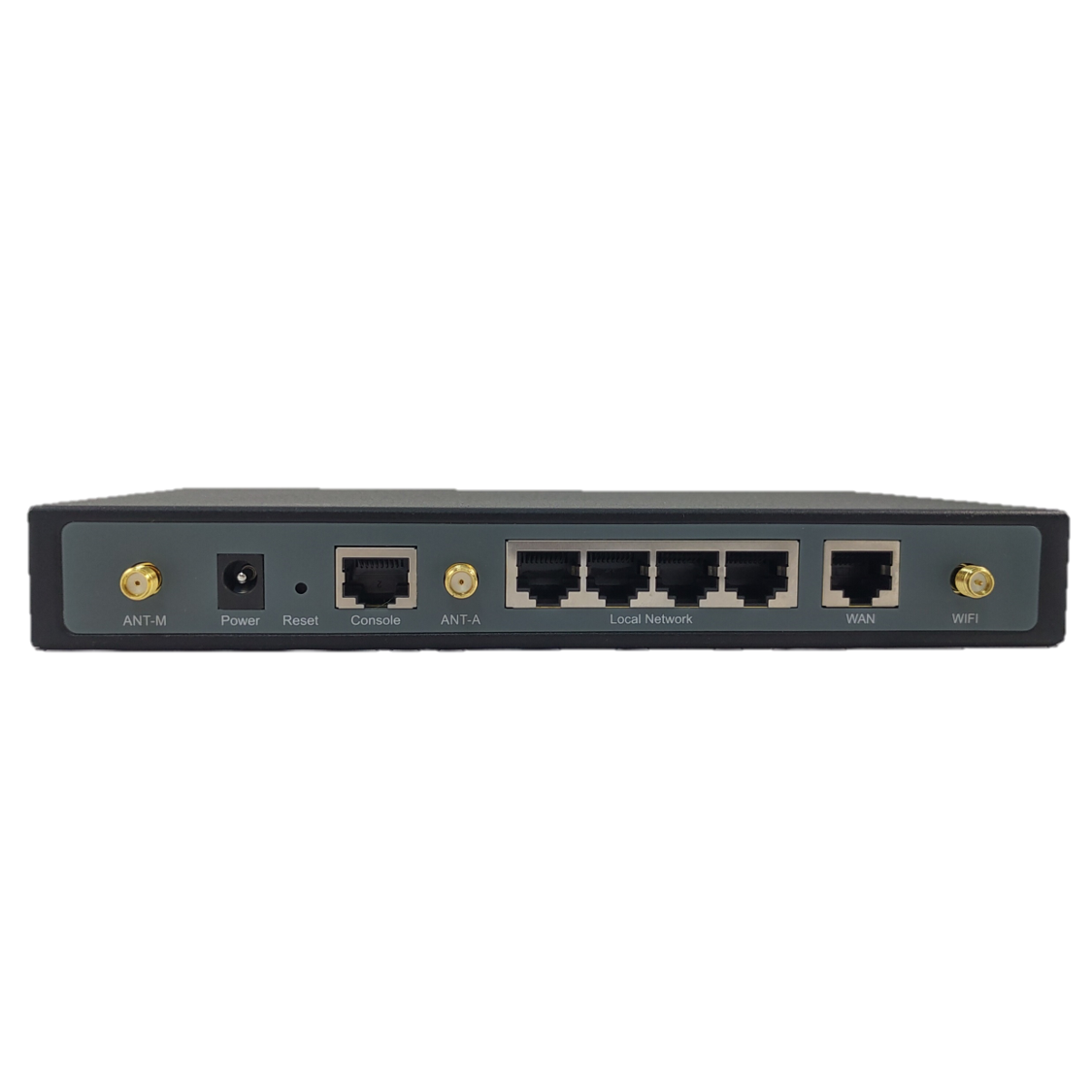

    Interface type
    • WAN:
      110/100MbpsWANport (RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
    • LAN: 4 10/100Mbps Ethernet ports (RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
    • Serial: 1 RS232 (or RS485/ RS422) port, 15KV ESD protection

      • Databits: 5,6,7,8
      Stopbits: 1, 1.5(optional), 2
      Parity: none, even, odd, space (optional),mark(optional)
      Baudrate: 2400~115200bps

    • Indicator: “Power”, “System”, “Online”, “SIM”, “Local Network”, “WAN”, “WIFI”, “Signal Strength”
    • Antenna:

      • Cellular: 2 Standard SMA female interface, 50ohm, lighting protection (option)
      WIFI: 1 Standard SMA male interface, 50ohm, lighting protection (option)

    • SIM/UIM:

      • Standard3V/1.8Vusercardinterface, 15KV ESD protection

    • Power:

      • Standard3-PINpowerjack, reverse-voltage and over-voltage protection

    • Reset:

      • Restore the Router to its original factory default settings

    Power Supply
    • Standard Power: DC 12V/1.5A
    • Power range: DC 5~3V
    Consumption
    • Standby: 293~326mA@12VDC
    • Communication: 310~554mA@12VDC
    • Schedule Shutdown: 2.75~4.2mA@12VDC
    Physical Characteristics
    • Housing: Iron, providing IP30 protection
    • Dimensions: 207x135x28mm
    • Weight: 790g
    Environment
    • Operating temperature: -35℃ ~ +75℃; (-31~+167℉) 95%(unfreezing)
    • Storage temperature: -40℃ ~ +85℃; (-40~+185℉)
